Yamaha Outboard Parts - GENERATOR - FL200CET (2024) | Flood Marine
New Search
Parts
New Outboards
Home
FL200CET (2024)
GENERATOR

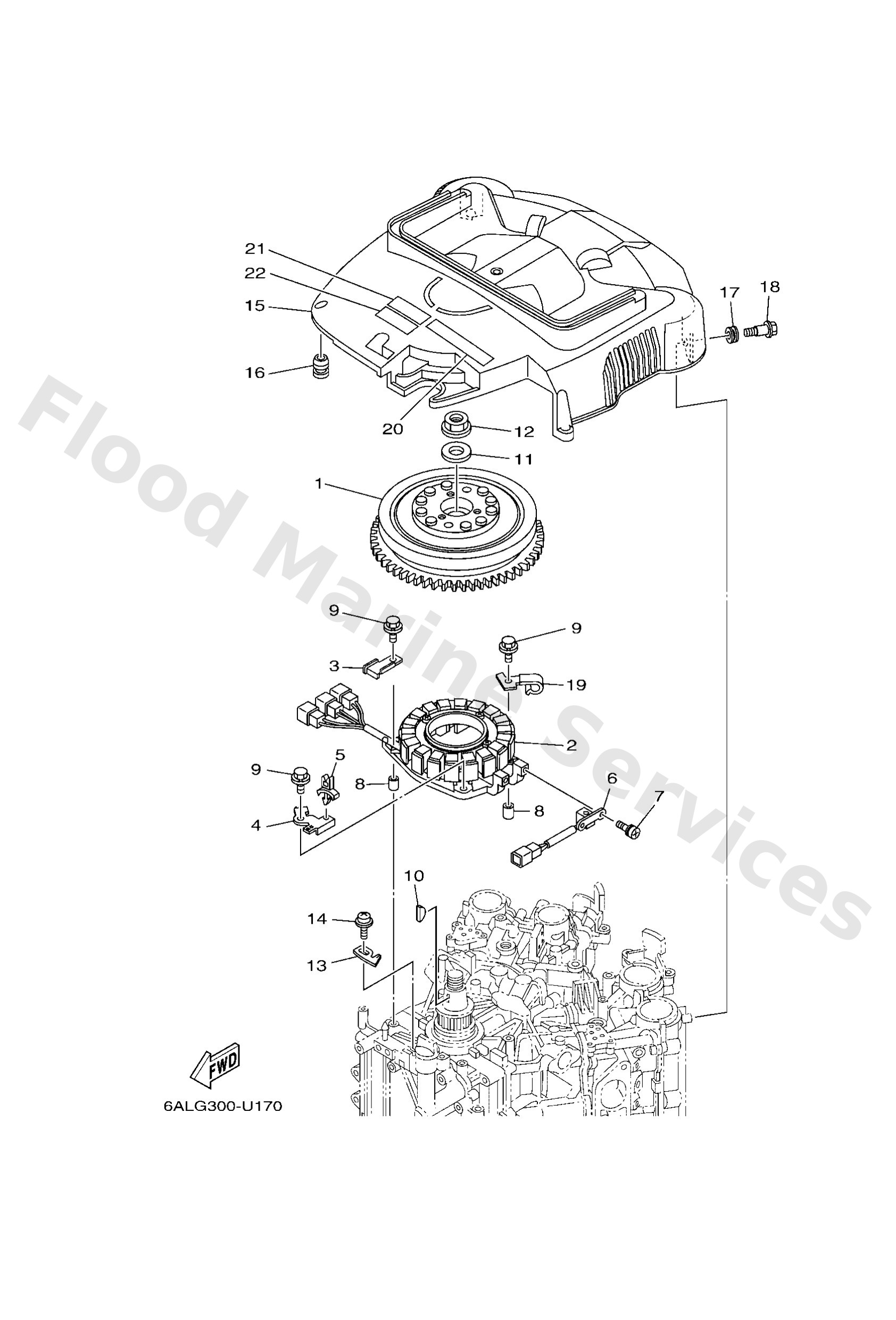

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6P28145000
Rotor assembly
Loading…
↗
2
6P28146000
Base assembly
Loading…
↗
3
6P28144300
Clamp, lead 1
Loading…
↗
4
6P28257V00
Plate, connector
Loading…
↗
5
9046406001
Clamp
Loading…
↗
6
6P28558000
Coil, pulser
Loading…
↗
7
9798005312
Screw, with washer
Loading…
↗
8
9953008012
Pin, dowel(6g8)
Loading…
↗
9
97E9506635
Bolt, hexagon w/w deep recess
Loading…
↗
10
9028005015
Key, woodruff
Loading…
↗
11
9020124014
Washer, plate
Loading…
↗
12
9017924002
Nut
Loading…
↗
13
6P28133200
Plate, timing
Loading…
↗
14
9798506210
Screw pan head
Loading…
↗
15
6P28133702
Cover, flywheel
Loading…
↗
16
6638231702
Damper, ignition coil
Loading…
↗
17
9048012314
Grommet(3aa)
Loading…
↗
18
9010906MA1
Bolt
Loading…
↗
19
6P28112800
Clamp
Loading…
↗
20
60L1343763
Mark, caution
Loading…
↗
21
6EE8199440
Label, safety
Loading…
↗
22
6EE8199450
Label, safety
Loading…
↗
