FL225AET (2002)
GENERATOR

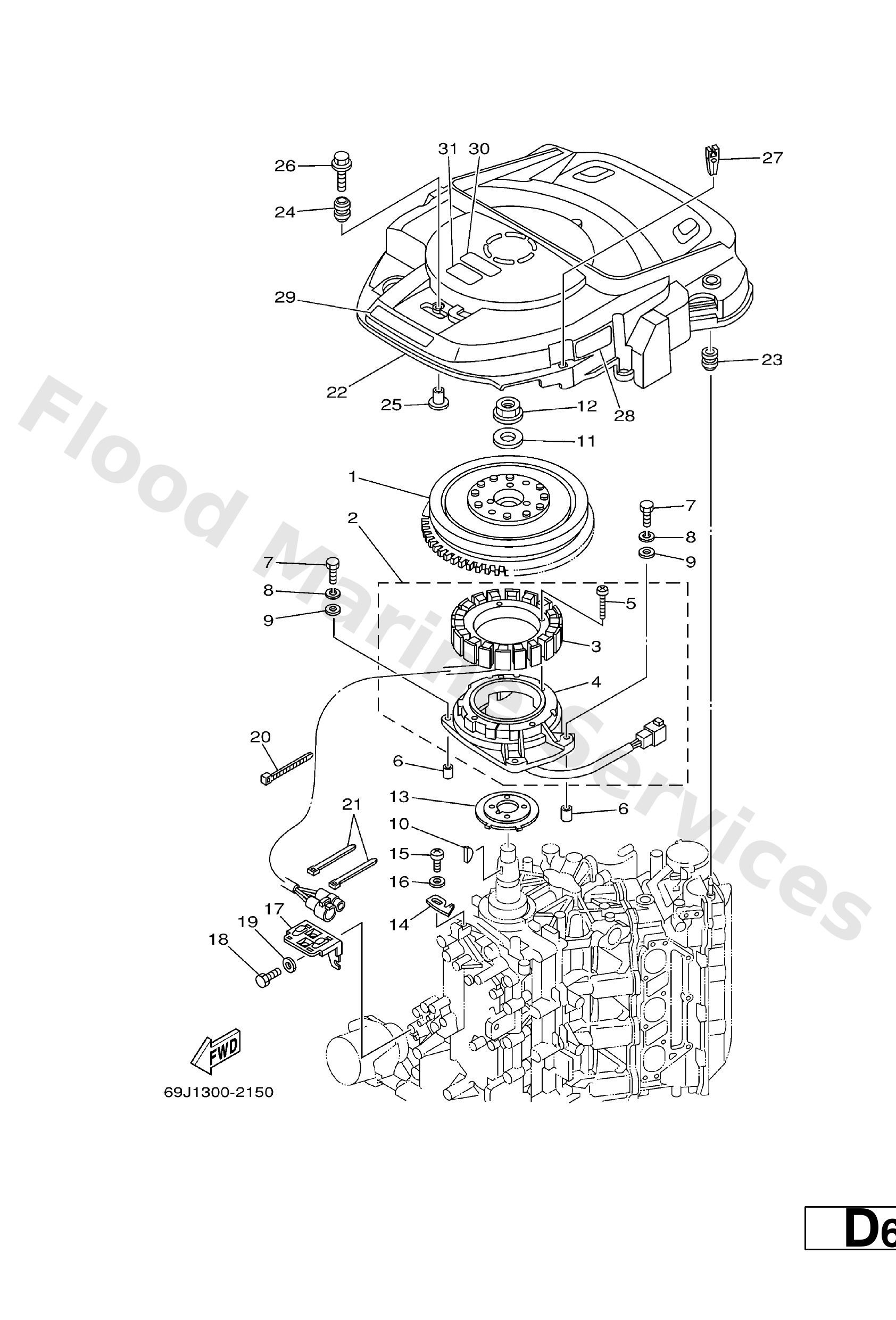

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
69J8145000
Rotor assembly
Loading…
↗
2
69J8146000
Base assembly
Loading…
↗
3
69J8558000
Coil, pulser
Loading…
↗
4
69J8141000
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
9953008012
Pin, dowel(6g8)
Loading…
↗
7
9709506035
Bolt(j52)
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
9028005015
Key, woodruff
Loading…
↗
11
9020124014
Washer, plate
Loading…
↗
12
9017924002
Nut
Loading…
↗
13
69J8167300
Rotor
Loading…
↗
14
67F8133200
Plate, timing
Loading…
↗
15
9788506010
Screw pan head
Loading…
↗
17
69J8132G00
Plate
Loading…
↗
18
9709506016
Bolt, hexagon deep recess
Loading…
↗
20
9046513M18
Clamp
Loading…
↗
21
9046514M66
Clamp
Loading…
↗
22
69J8133700
Cover, flywheel
Loading…
↗
23
6638231701
Damper, ignition coil
Loading…
↗
24
6A08231700
Damper, ignition coil
Loading…
↗
25
6244254200
Collar
Loading…
↗
26
9011906M59
Bolt, with washer
Loading…
↗
27
67F2812A00
Puller, fuse
Loading…
↗
28
69J8191910
Graphic, Regulator
Loading…
↗
29
69J1343760
Mark, Caution
Loading…
↗
30
6A18362541
Mark 5
Loading…
↗
31
6A18362551
Mark 5
Loading…
↗
