Yamaha Outboard Parts - GENERATOR - FL225BET (2007) | Flood Marine

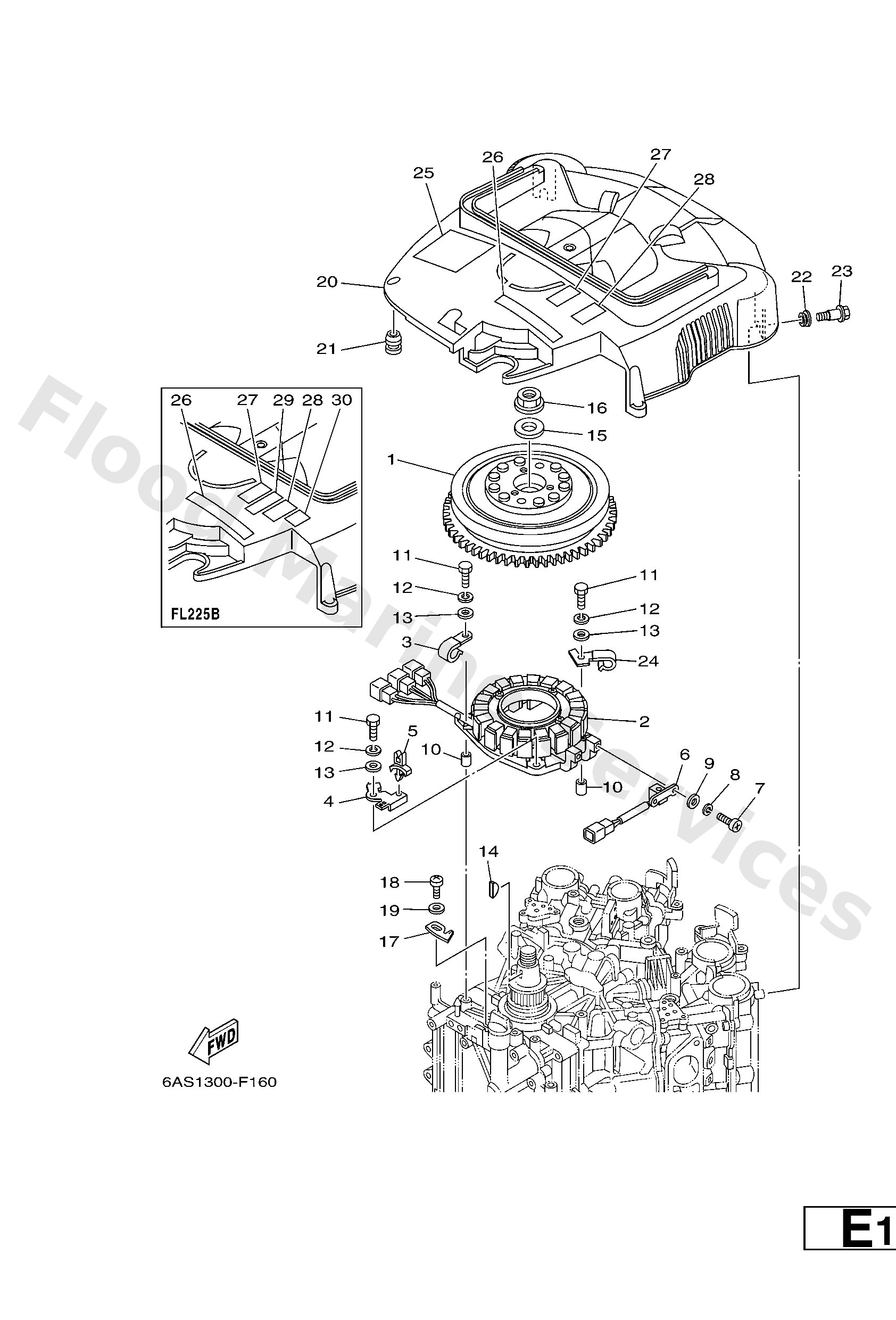

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6P28145000
Rotor assembly
Loading…

↗
2
6P28146000
Base assembly
Loading…

↗
3
9046208032
Clamp
Loading…

↗
4
6P28257V00
Plate, connector
Loading…

↗
5
9046406001
Clamp
Loading…

↗
6
6P28558000
Coil, pulser
Loading…

↗
7
9788005012
Screw,pan head (646)
Loading…

↗
8
9299005100
Ybs67-5 washer, spring
Loading…

↗
9
9299005600
Washer, plain (646)
Loading…

↗
10
9953008012
Pin, dowel(6g8)
Loading…

↗
11
9709506035
Bolt(j52)
Loading…

↗
12
9299506100
Washer(6a1)
Loading…

↗
13
9299506600
Washer, plain (646)
Loading…

↗
14
9028005015
Key, woodruff
Loading…

↗
15
9020124014
Washer, plate
Loading…

↗
16
9017924002
Nut
Loading…

↗
17
6P28133200
Plate, timing
Loading…

↗
18
9788506010
Screw pan head
Loading…

↗
20
6P28133700
Cover, flywheel
Loading…

↗
21
6638231701
Damper, ignition coil
Loading…

↗
22
9048012072
Grommet(53y)
Loading…

↗
23
9010906M04
Bolt
Loading…

↗
24
6P28112800
Clamp
Loading…

↗
25
6P28191900
Graphic, regulator
Loading…

↗
26
60L1343761
Mark, caution
Loading…

↗
27
6A18362541
Mark 5
Loading…

↗
28
6A18362551
Mark 5
Loading…

↗
29
6K18362341
Mark 3
Loading…

↗
30
6K18362350
Mark 3
Loading…

↗
