FL300AET (2011)
GENERATOR

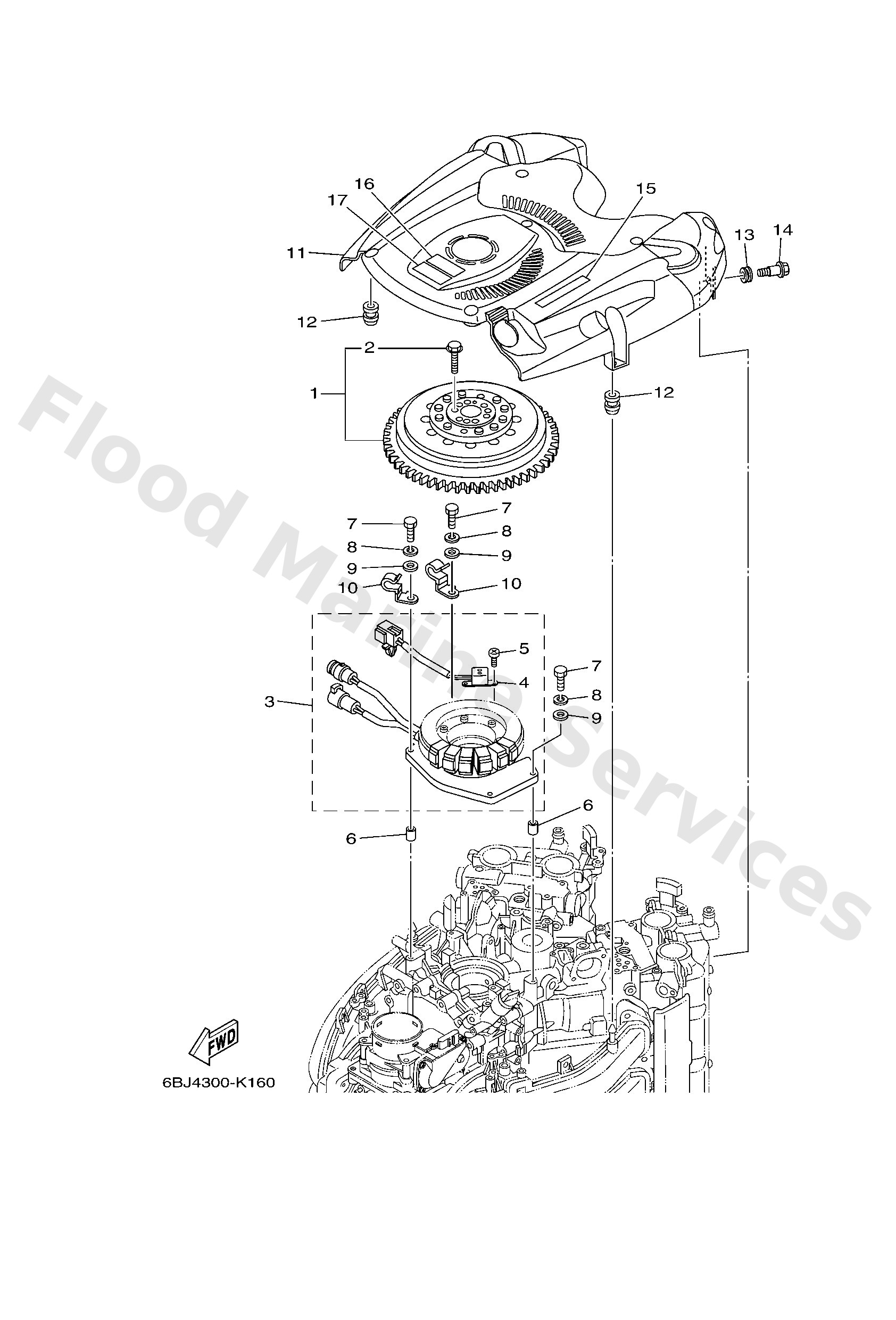

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6AWW814501
F350 rotor kit
Loading…
↗
2
6AWW901100
Bolt set
Loading…
↗
3
6AW8146000
Base assembly
Loading…
↗
4
6AW8558000
Coil, pulser
Loading…
↗
5
63D8134500
Screw, pan
Loading…
↗
6
9953008012
Pin, dowel(6g8)
Loading…
↗
7
9709506030
Bolt(jf7)
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
9046210042
Clamp
Loading…
↗
11
6AW8133701
Cover, flywheel
Loading…
↗
12
6638231701
Damper, ignition coil
Loading…
↗
13
9048012314
Grommet(3aa)
Loading…
↗
14
9010906MA1
Bolt
Loading…
↗
15
6AW1343761
Mark, caution
Loading…
↗
16
6AH8199440
Label, safety
Loading…
↗
17
6AH8199450
Label, safety
Loading…
↗
