Yamaha Outboard Parts - GENERATOR - FL300CET (2020) | Flood Marine

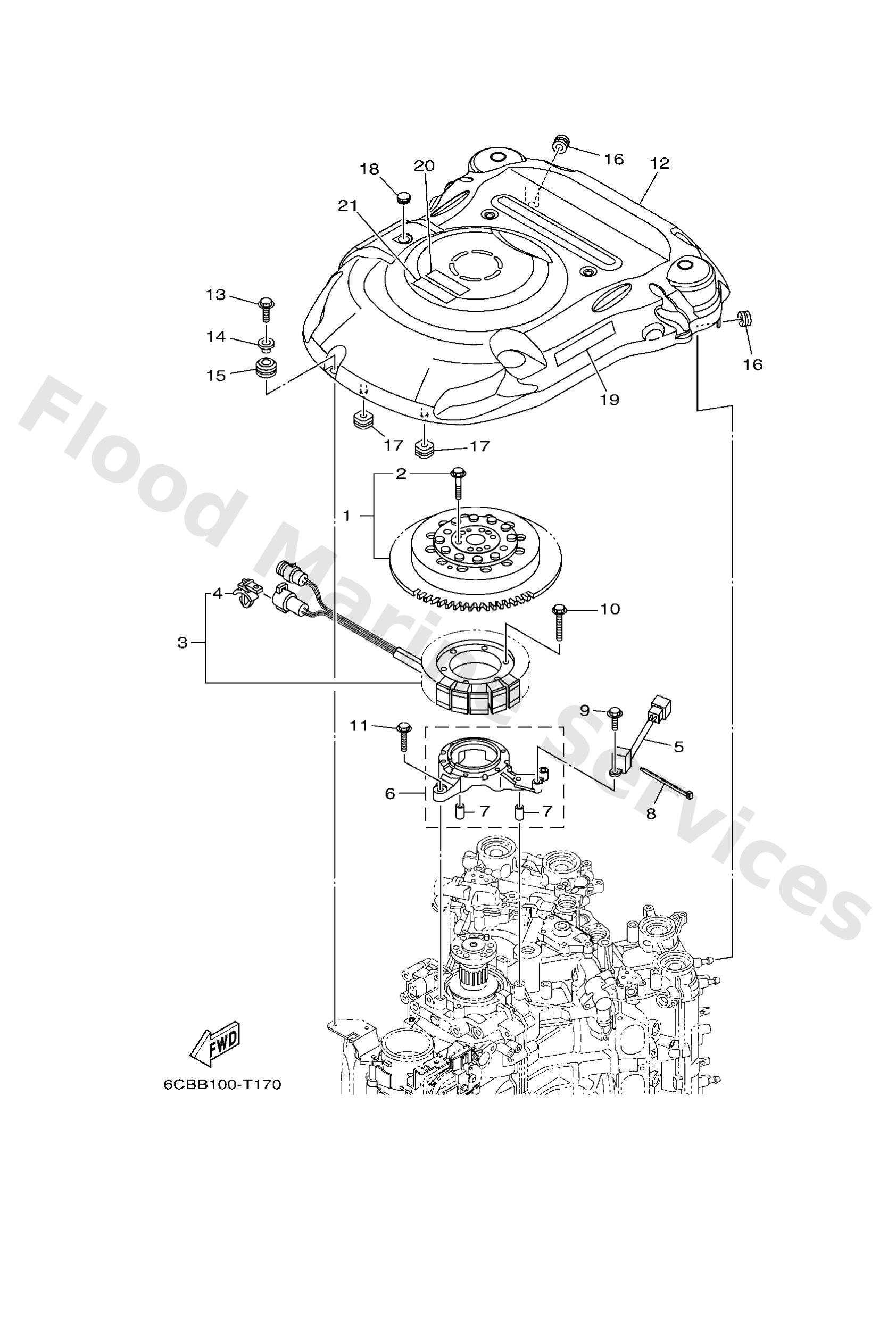

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6CBW814510
Rotor assembly with bolts
Loading…

↗
2
6EKW901000
Bolt set
Loading…

↗
3
6CB8141011
Stator assembly
Loading…

↗
4
9046412002
Clamp
Loading…

↗
5
6CB8558000
Coil, pulser
Loading…

↗
6
6CB8556110
Base, magneto
Loading…

↗
7
9953008012
Pin, dowel(6g8)
Loading…

↗
8
9046513M97
Clamp
Loading…

↗
9
9759505520
Bolt, With Washer
Loading…

↗
10
9502206035
Bolt, flange
Loading…

↗
11
95D9506030
Bolt, flange deep recess
Loading…

↗
12
6CB8133711
Cover, flywheel
Loading…

↗
13
95D9506020
Bolt, flange deep recess
Loading…

↗
14
9038706285
Collar
Loading…

↗
15
9048015M31
Grommet (6g1)
Loading…

↗
16
9048012314
Grommet(3aa)
Loading…

↗
17
6CB8551600
Spacer
Loading…

↗
18
9048016025
Grommet (715)
Loading…

↗
19
6CE1343761
Mark, caution
Loading…

↗
20
6EE8199440
Label, safety
Loading…

↗
21
6EE8199450
Label, safety
Loading…

↗
