Yamaha Outboard Parts - GENERATOR - FL350AET (2013) | Flood Marine

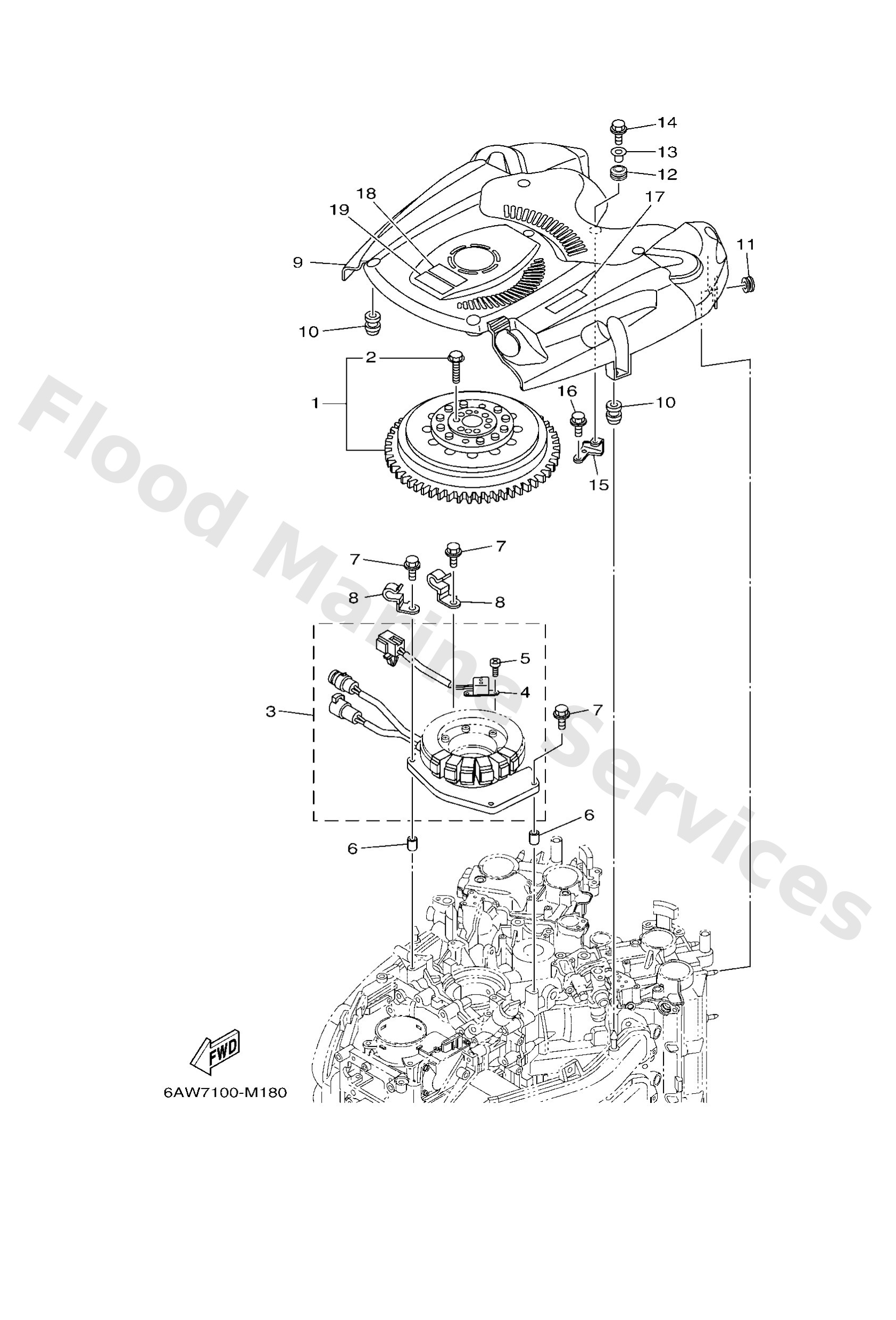

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6AWW814501
F350 rotor kit
Loading…

↗
2
6AWW901100
Bolt set
Loading…

↗
3
6AW8146000
Base assembly
Loading…

↗
4
6AW8558000
Coil, pulser
Loading…

↗
5
63D8134500
Screw, pan
Loading…

↗
6
9953008012
Pin, dowel(6g8)
Loading…

↗
7
9759506630
Bolt, hexagon w/w deep recess
Loading…

↗
8
9046210042
Clamp
Loading…

↗
9
6AW8133702
Cover, flywheel
Loading…

↗
10
6638231701
Damper, ignition coil
Loading…

↗
11
9048012314
Grommet(3aa)
Loading…

↗
12
9048015M31
Grommet (6g1)
Loading…

↗
13
9038706285
Collar
Loading…

↗
14
9589506020
Bolt, flange(jk3)
Loading…

↗
15
6AW8132G00
Plate
Loading…

↗
16
9757506514
Bolt, hexagon w/w deep recess
Loading…

↗
17
6AW1343761
Mark, caution
Loading…

↗
18
6AH8199440
Label, safety
Loading…

↗
19
6AH8199450
Label, safety
Loading…

↗
