FT25BED (2002)
GENERATOR

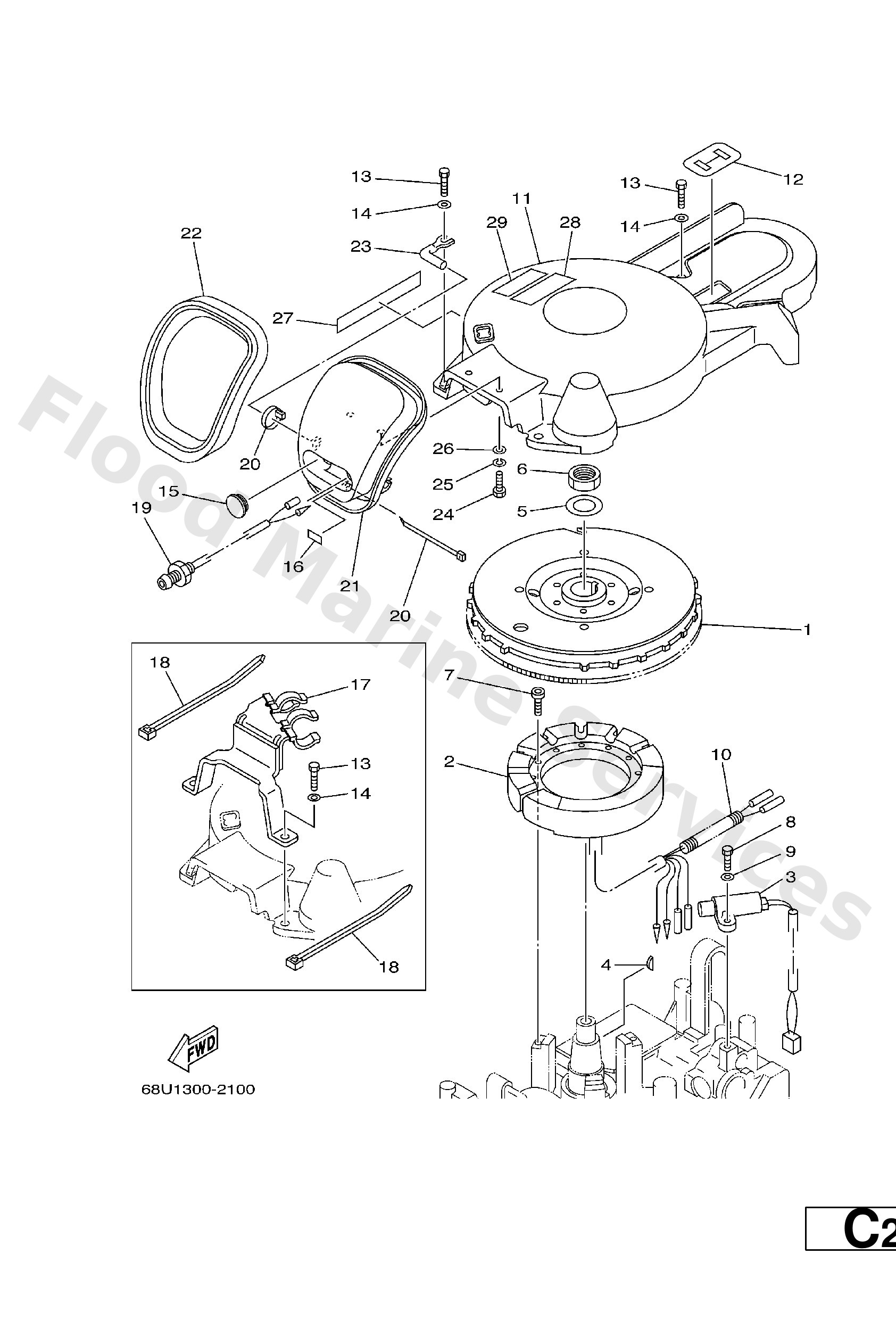

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
65W8555001
Rotor assembly
Loading…
↗
2
65W--85510--10
Stator assembly
Loading…
↗
3
65W--85580--00
Coil, pulser
Loading…
↗
4
65W--11545--00
Key, woodruff
Loading…
↗
5
90201--21M18
Washer, plate (663)
Loading…
↗
6
90170--20137
Nut, hexagon(663)
Loading…
↗
7
91380--05030
Bolt,socket
Loading…
↗
8
97095--05016
Bolt(6a1)
Loading…
↗
9
92995--05600
Washer, plain (646)
Loading…
↗
10
90446--10M82
Hose
Loading…
↗
11
65W--81337--00
Cover, Flywheel
Loading…
↗
12
65W--81639--00
Plate, Armature Fitting
Loading…
↗
13
97095--06025
Bolt
Loading…
↗
14
92995--06600
Washer, plain (646)
Loading…
↗
15
6G1--42725--00
Grommet
Loading…
↗
16
65W--84342--00
Seat, emblem
Loading…
↗
17
65W8259410
Clamp
Loading…
↗
18
90465--13M18
Clamp
Loading…
↗
19
65W--85410--01
Emergency signal light assembly
Loading…
↗
20
90465--11M10
Clamp
Loading…
↗
21
65W--15758--10
Guide, Rope
Loading…
↗
22
65W--15762--00
Seal, rubber 2
Loading…
↗
23
65W1577100
Stay 1
Loading…
↗
24
97095--06020
Bolt(7u8)
Loading…
↗
25
92995--06100
Washer(6a1)
Loading…
↗
27
65W1343760
Mark, caution
Loading…
↗
28
6A1--83625--41
Mark 5
Loading…
↗
29
6A1--83625--51
Mark 5
Loading…
↗
