Yamaha Outboard Parts - GENERATOR - FT25BET (2005) | Flood Marine

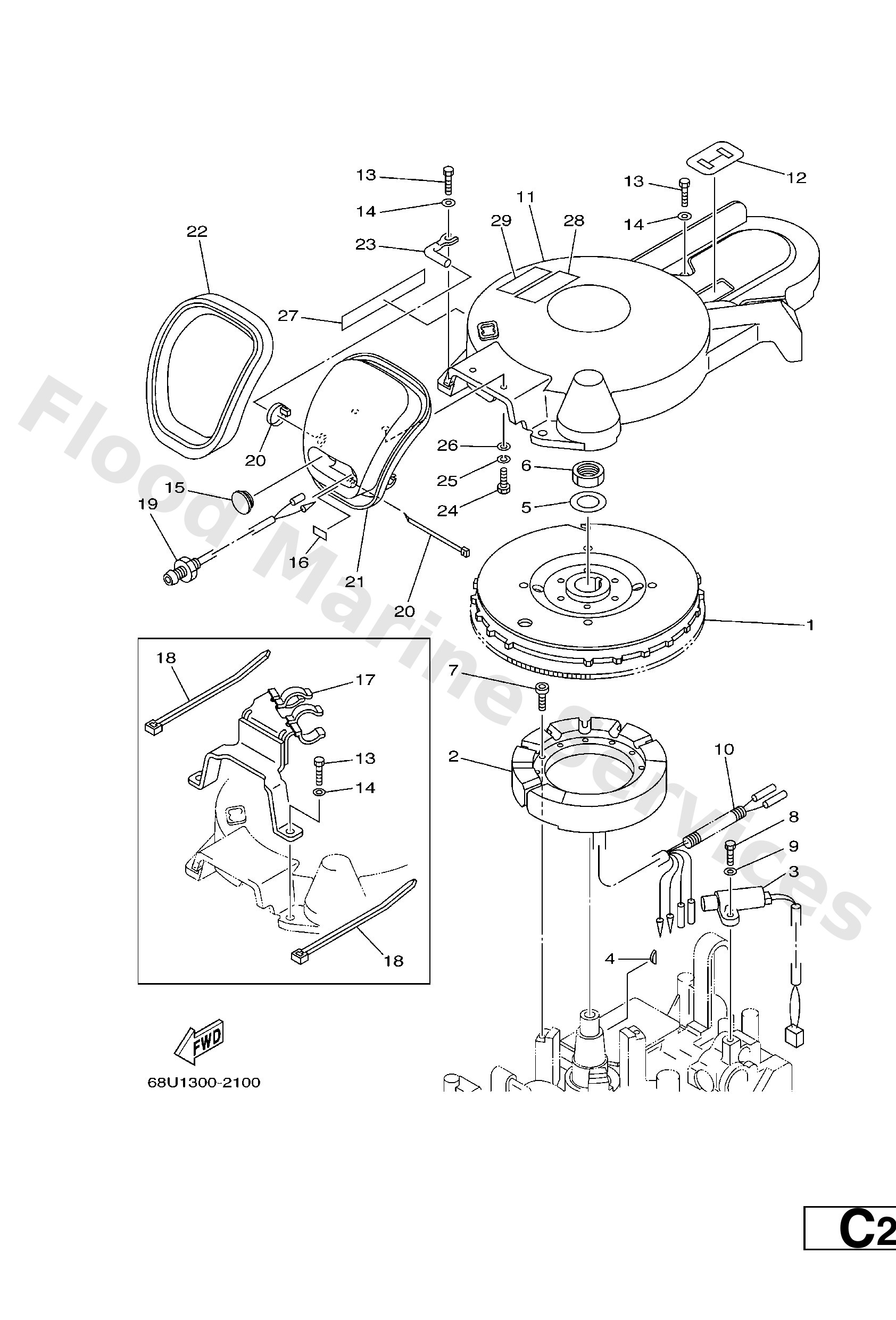

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
65W8555001
Rotor assembly
Loading…

↗
2
65W8551010
Stator assembly
Loading…

↗
3
65W8558000
Coil, pulser
Loading…

↗
4
65W1154500
Key, woodruff
Loading…

↗
5
9020121M18
Washer, plate (663)
Loading…

↗
6
9017020137
Nut, hexagon(663)
Loading…

↗
7
9138005030
Bolt,socket
Loading…

↗
8
9709505016
Bolt(6a1)
Loading…

↗
9
9299505600
Washer, plain (646)
Loading…

↗
10
9044610M82
Hose
Loading…

↗
11
65W8133700
Cover, Flywheel
Loading…

↗
12
65W8163900
Plate, Armature Fitting
Loading…

↗
13
9709506025
Bolt
Loading…

↗
14
9299506600
Washer, plain (646)
Loading…

↗
15
6G14272500
Grommet
Loading…

↗
16
65W8434200
Seat, emblem
Loading…

↗
17
65W8259410
Clamp
Loading…

↗
18
9046513M18
Clamp
Loading…

↗
19
65W8541001
Emergency signal light assembly
Loading…

↗
20
9046511M10
Clamp
Loading…

↗
21
65W1575810
Guide, Rope
Loading…

↗
22
65W1576200
Seal, rubber 2
Loading…

↗
23
65W1577100
Stay 1
Loading…

↗
24
9709506020
Bolt(7u8)
Loading…

↗
25
9299506100
Washer(6a1)
Loading…

↗
27
68U1343760
Mark, caution
Loading…

↗
28
6A18362541
Mark 5
Loading…

↗
29
6A18362551
-
Loading…

↗
