Yamaha Outboard Parts - GENERATOR - FT25FET (2019) | Flood Marine

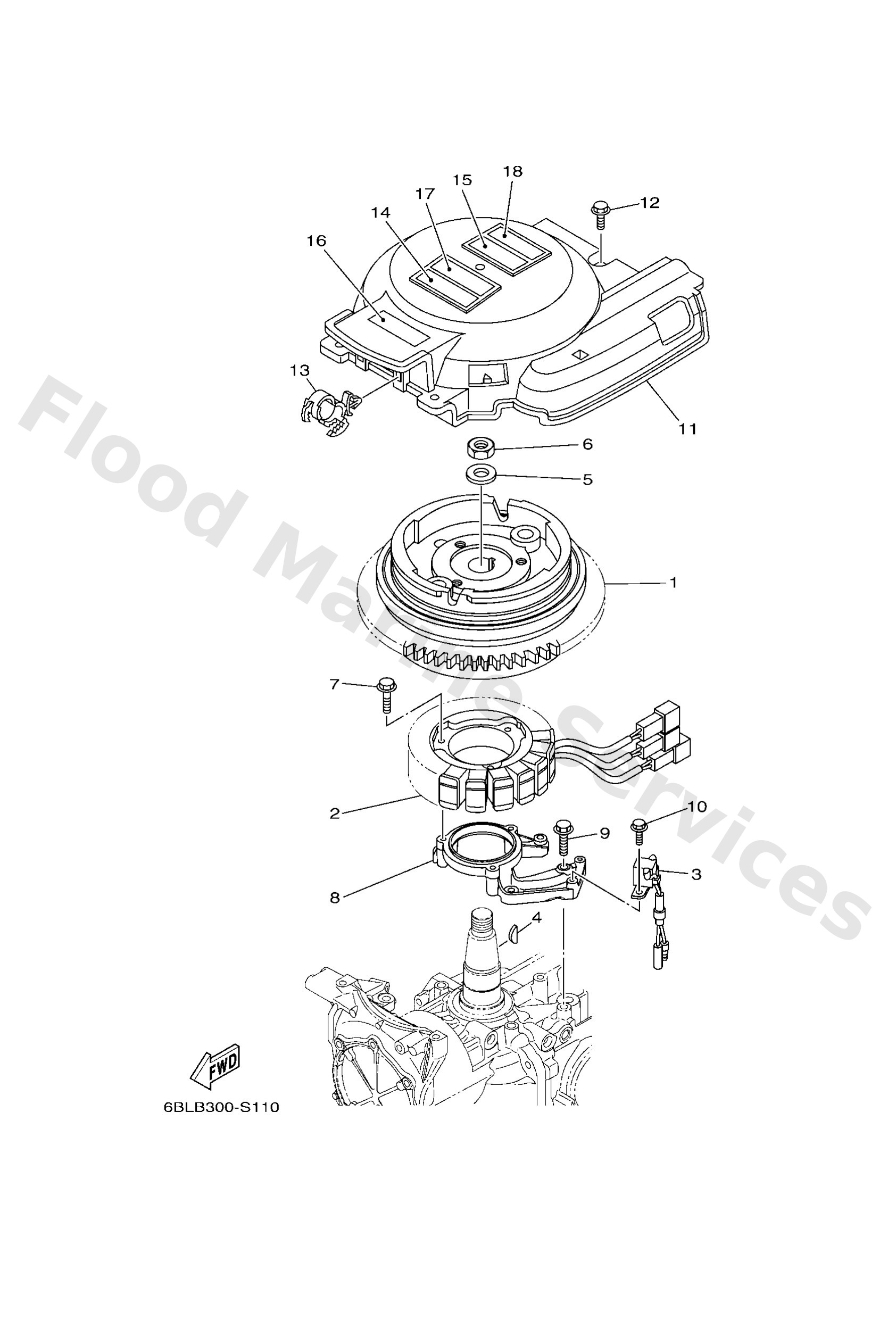

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6BL8555000
Rotor assembly
Loading…

↗
2
6BL8551000
Stator assembly
Loading…

↗
3
6AH8558000
Coil, pulser
Loading…

↗
4
6H41154500
Key, woodruff
Loading…

↗
5
9020121M18
Washer, plate (663)
Loading…

↗
6
9017020137
Nut, hexagon(663)
Loading…

↗
7
9502306030
Bolt, flange(4as)
Loading…

↗
8
6BG855610094
Base, magneto
Loading…

↗
9
9502306025
Bolt, flange(4kg)
Loading…

↗
10
9759505516
Bolt, with washer
Loading…

↗
11
6BL8133700
Cover, flywheel
Loading…

↗
12
97E9506520
Bolt, hexagon w/w deep recess
Loading…

↗
13
9046412183
Clamp(jn2)
Loading…

↗
14
6EE8199440
Label, safety
Loading…

↗
15
6EE8199540
Label, warning
Loading…

↗
16
6AG8199600
Mark
Loading…

↗
17
6EE8199450
Label, safety
Loading…

↗
18
6EE8199550
Label, warning
Loading…

↗
