Yamaha Outboard Parts - GENERATOR - FT50CET (2007) | Flood Marine

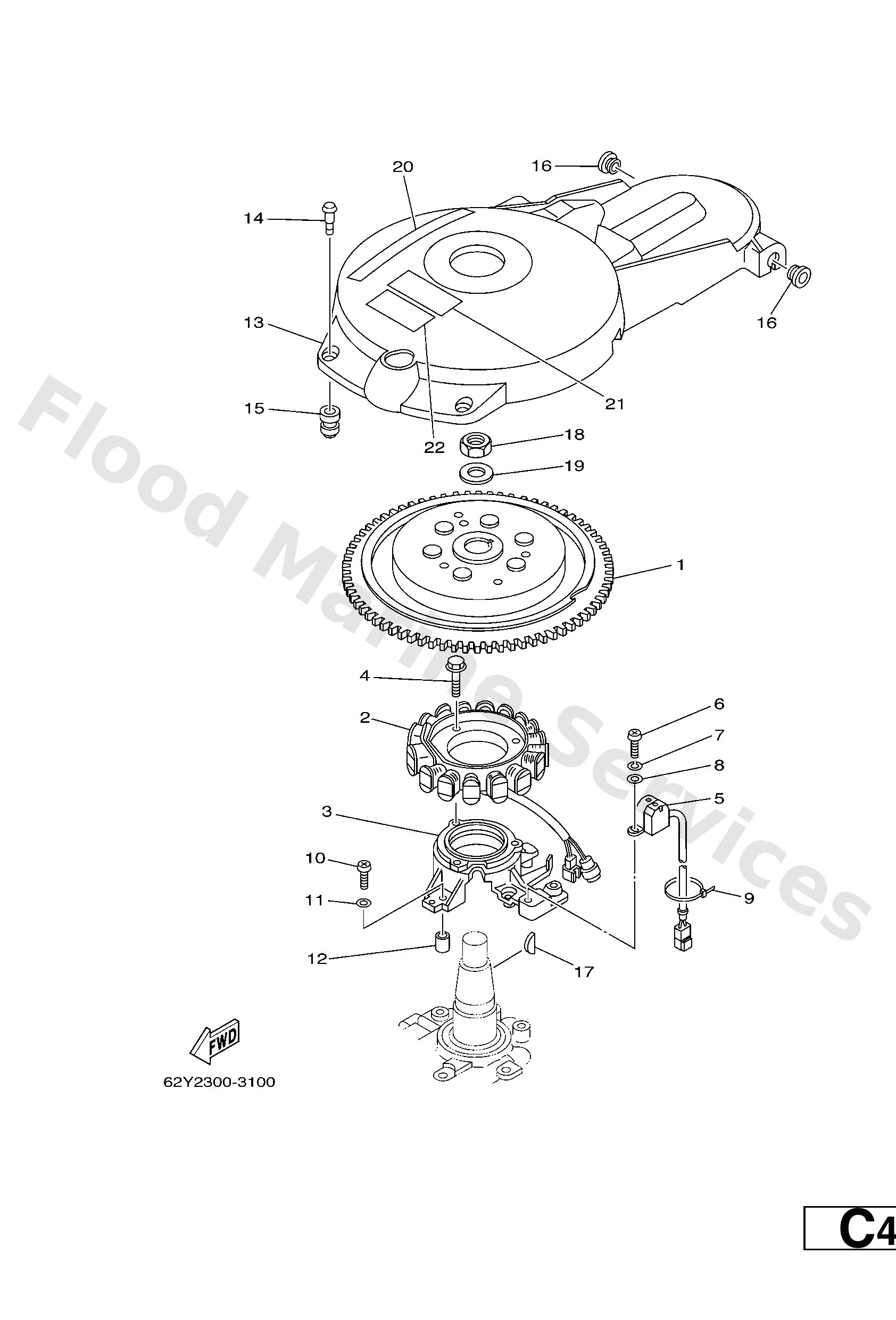

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
69W8555010
Rotor assembly
Loading…

↗
2
64J8551000
Stator assembly
Loading…

↗
3
62Y855610094
Base, magneto
Loading…

↗
4
9502306025
Bolt, flange(4kg)
Loading…

↗
5
62Y8558000
Coil, pulser
Loading…

↗
6
9788005012
Screw,pan head (646)
Loading…

↗
7
9299005100
Ybs67-5 washer, spring
Loading…

↗
8
9299005600
Washer, plain (646)
Loading…

↗
9
9046513M97
Clamp
Loading…

↗
10
9788006025
Screw, pan head(6b0)
Loading…

↗
11
9299006600
Washer, plain (646)
Loading…

↗
12
9953008012
Pin, dowel(6g8)
Loading…

↗
13
62Y8133711
Cover, flywheel
Loading…

↗
14
6K78133801
Stay
Loading…

↗
15
6638231701
Damper, ignition coil
Loading…

↗
16
9048012072
Grommet(53y)
Loading…

↗
17
6H41154500
Key, woodruff
Loading…

↗
18
9017020137
Nut, hexagon(663)
Loading…

↗
19
9020121M18
Washer, plate (663)
Loading…

↗
20
62Y1343762
Mark, caution
Loading…

↗
21
6A18362541
Mark 5
Loading…

↗
22
6A18362551
-
Loading…

↗
