Yamaha Outboard Parts - GENERATOR - FT50JET (2016) | Flood Marine

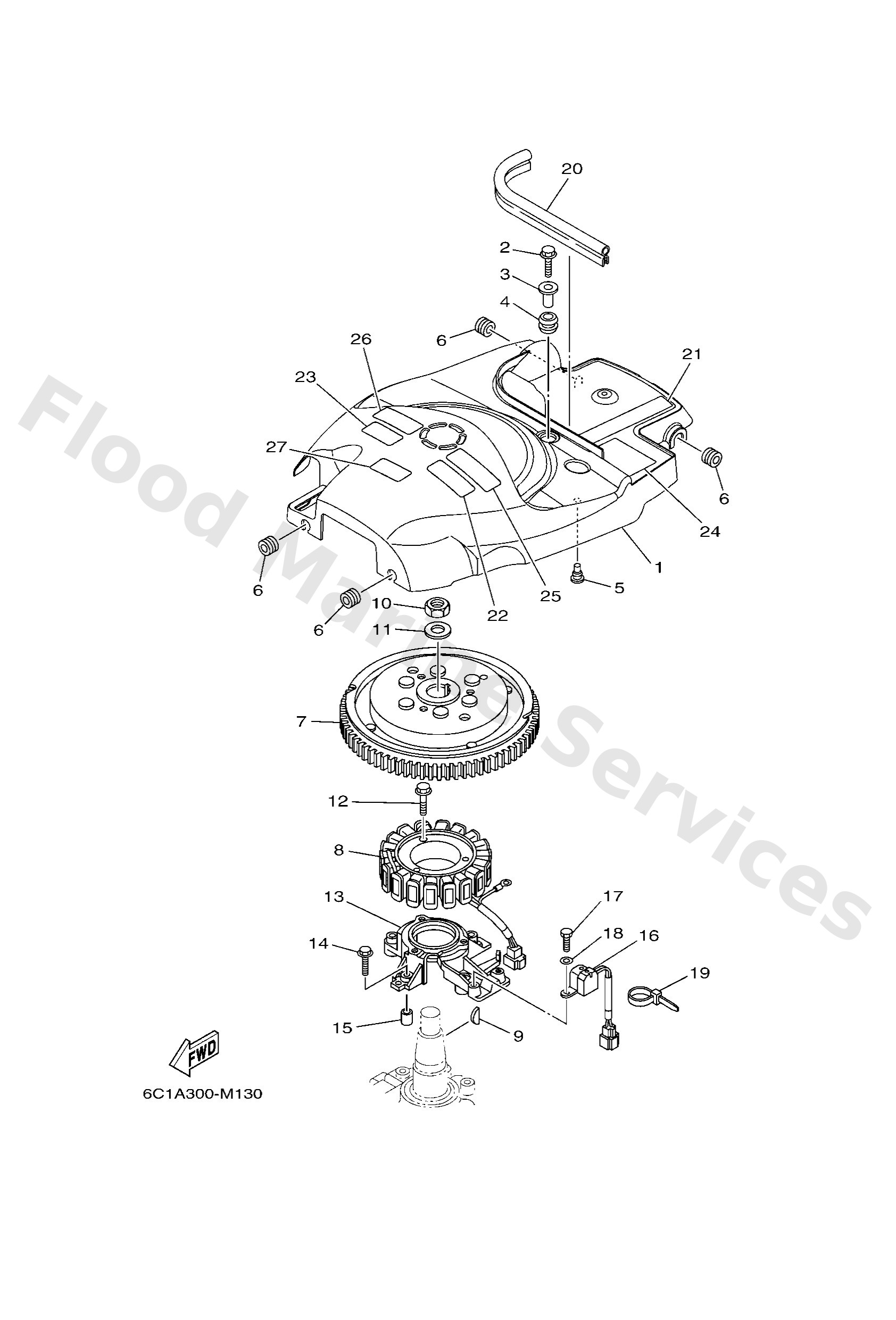

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6C58133710
Cover, flywheel
Loading…

↗
2
9589506020
Bolt, flange(jk3)
Loading…

↗
3
9038706285
Collar
Loading…

↗
4
9048015M31
Grommet (6g1)
Loading…

↗
5
9048006M19
Grommet (6e3)
Loading…

↗
6
9048012314
Grommet(3aa)
Loading…

↗
7
6C58145000
Rotor assembly
Loading…

↗
8
6C58141001
Stator assembly
Loading…

↗
9
6H41154500
Key, woodruff
Loading…

↗
10
9017020137
Nut, hexagon(663)
Loading…

↗
11
9020121M18
Washer, plate (663)
Loading…

↗
12
9502306030
Bolt, flange(4as)
Loading…

↗
13
6C58556100
Base, magneto
Loading…

↗
15
9953008012
Pin, dowel(6g8)
Loading…

↗
16
62Y8558000
Coil, pulser
Loading…

↗
17
9709505012
Bolt, hexagon
Loading…

↗
18
9299505600
Washer, plain (646)
Loading…

↗
19
9046513M97
Clamp
Loading…

↗
20
6CB4261700
Damper, form
Loading…

↗
21
6C51343762
Mark, caution
Loading…

↗
22
6EE8199540
Label, warning
Loading…

↗
23
6EE8199550
Label, warning
Loading…

↗
24
62Y8362600
Mark. 6
Loading…

↗
25
6EE8199440
Label, safety
Loading…

↗
26
6EE8199450
Label, safety
Loading…

↗
27
6AG8199600
Mark
Loading…

↗
