LF115B (2023)
GENERATOR

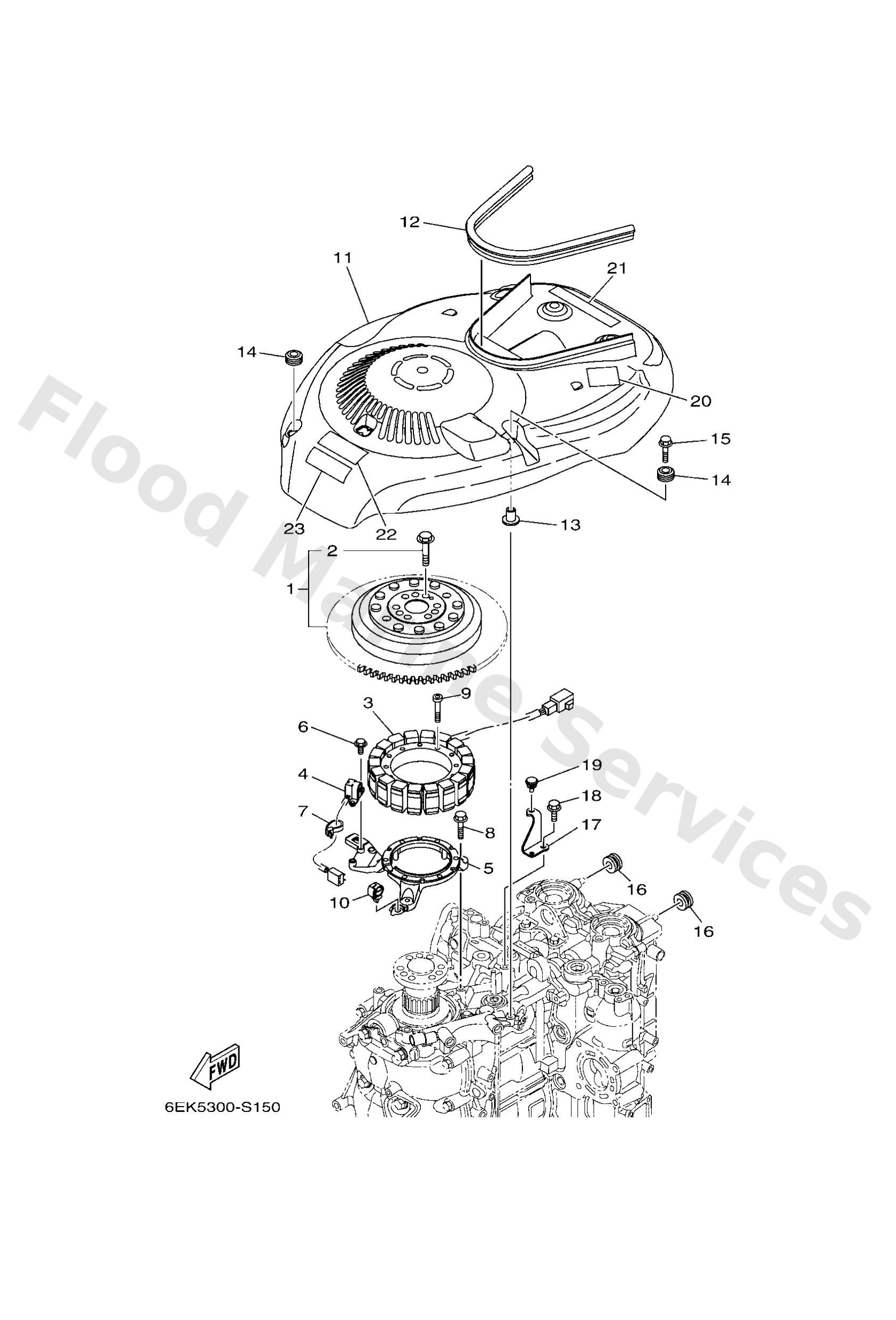

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6EKW814501
Rotor assembly with bolts
Loading…
↗
2
6EKW901000
Bolt set
Loading…
↗
3
6EK8141000
Stator assembly
Loading…
↗
4
6CB8558000
Coil, pulser
Loading…
↗
5
6EK8556100
Base, magneto
Loading…
↗
6
9759505516
Bolt, with washer
Loading…
↗
7
9046513M97
Clamp
Loading…
↗
8
95D9506030
Bolt, flange deep recess
Loading…
↗
9
9131206035
Bolt(j17)
Loading…
↗
10
9046413249
Clamp
Loading…
↗
11
6EK8133701
Cover, flywheel
Loading…
↗
12
6EK4261700
Damper, form
Loading…
↗
13
9038706119
Collar
Loading…
↗
14
6A08231701
Damper, ignition coil
Loading…
↗
16
9048012314
Grommet(3aa)
Loading…
↗
17
6EK8132G00
Plate
Loading…
↗
18
95D9506016
Bolt, flange deep recess
Loading…
↗
19
9048006M19
Grommet (6e3)
Loading…
↗
20
6EK8362602
Mark 6
Loading…
↗
21
6EK1343762
Mark, caution
Loading…
↗
22
6EE8199440
Label, safety
Loading…
↗
23
6EE8199450
Label, safety
Loading…
↗
