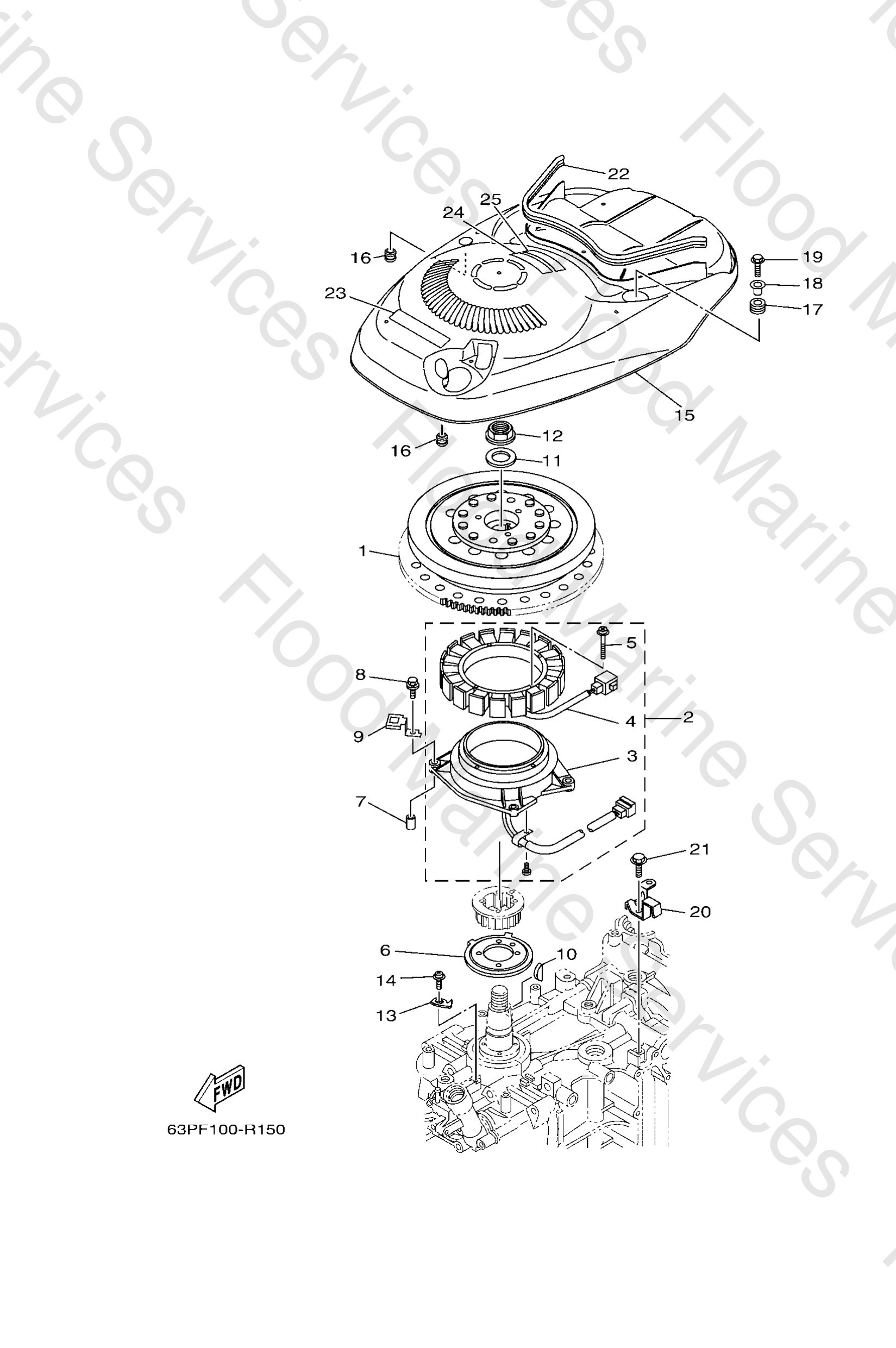

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
63P8145000
Rotor assembly
Loading…

↗
2
63P8146001
Base assembly
Loading…

↗
3
63P8558001
Coil, Pulser
Loading…

↗
4
63P8141000
Stator assembly
Loading…

↗
5
63D8134520
Screw, pan
Loading…

↗
6
63P8167301
Rotor
Loading…

↗
7
9953008012
Pin, dowel(6g8)
Loading…

↗
8
97E9506635
Bolt, hexagon w/w deep recess
Loading…

↗
9
63P8184500
Plate
Loading…

↗
10
9028005015
Key, woodruff
Loading…

↗
11
9020124014
Washer, plate
Loading…

↗
12
9017924002
Nut
Loading…

↗
13
6P28133200
Plate, timing
Loading…

↗
14
9798506210
Screw pan head
Loading…

↗
15
63P8133711
Cover, flywheel
Loading…

↗
16
6A08231701
Damper, ignition coil
Loading…

↗
17
9048015M31
Grommet (6g1)
Loading…

↗
18
9038706285
Collar
Loading…

↗
19
95D9506020
Bolt, flange deep recess
Loading…

↗
20
63P8132G10
Plate
Loading…

↗
21
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
22
6DA4261700
Damper, form
Loading…

↗
23
63P1343763
Mark, caution
Loading…

↗
24
6EE8199441
Label, Safety
Loading…

↗
25
6EE8199451
Label, Safety
Loading…

↗
