LZ300AETO (2004)
GENERATOR

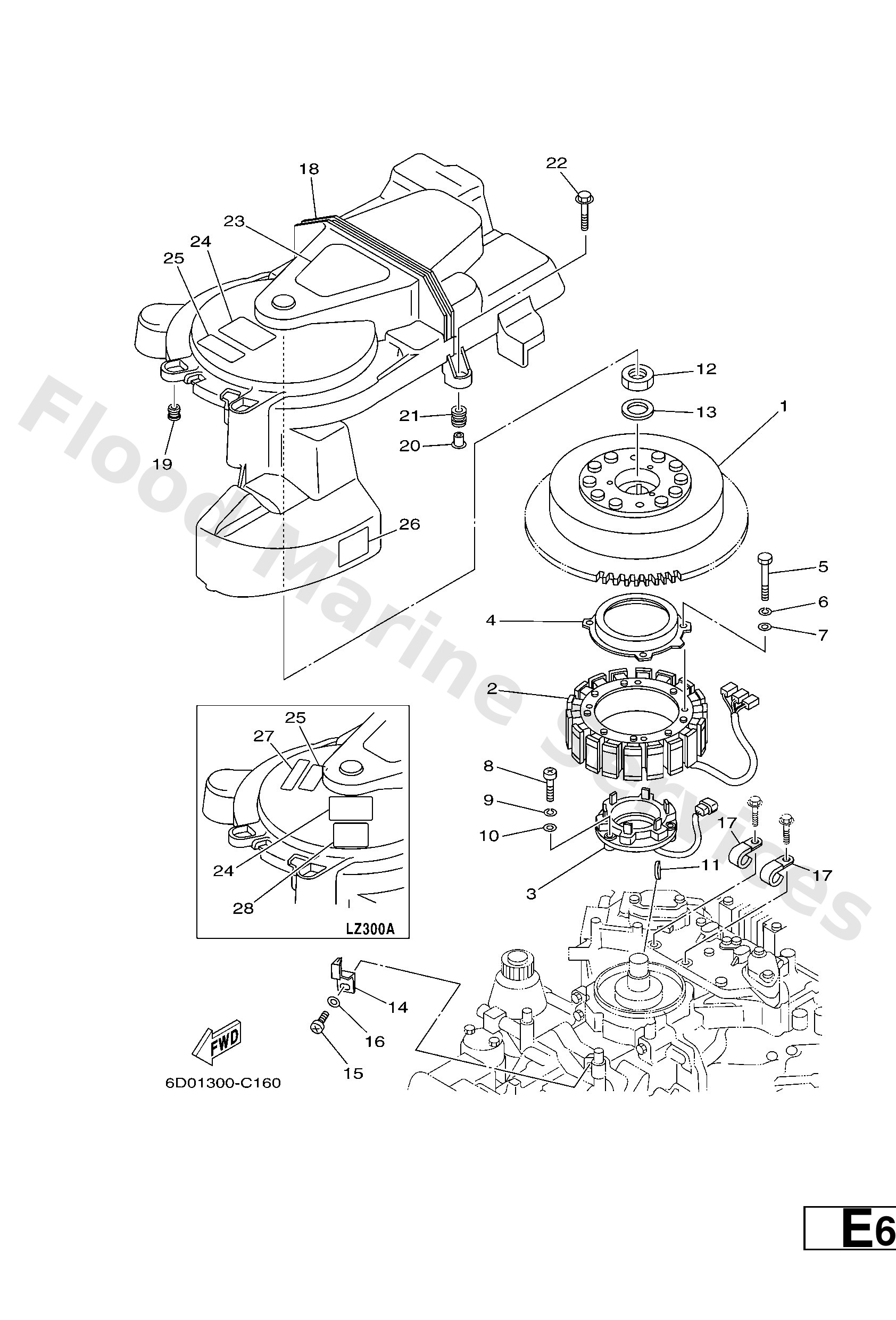

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
60V8145000
Rotor assembly
Loading…
↗
2
60V8141001
Stator assembly
Loading…
↗
3
60V8558000
Coil, pulser
Loading…
↗
4
61A8372100
Cover
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306100
Washer(6a1)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
9788505030
Ybs86-530 screw,panhead
Loading…
↗
9
9299505100
Ybs67-5 washer, spring
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
9028005015
Key, woodruff
Loading…
↗
12
9017024M22
Nut(61a)
Loading…
↗
13
9020125M02
Washer, plate(61a)
Loading…
↗
14
60V8133200
Plate, Timing
Loading…
↗
15
9788506010
Screw pan head
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
9046506M86
Clamp
Loading…
↗
18
60V8133700
Cover, flywheel
Loading…
↗
19
6638231701
Damper, ignition coil
Loading…
↗
20
6244254200
Collar
Loading…
↗
21
6A08231700
Damper, ignition coil
Loading…
↗
22
9589506030
Bolt, flange deep recess
Loading…
↗
23
60V1448800
Label, caution
Loading…
↗
24
6A18362551
Mark 5
Loading…
↗
25
6A18362541
Mark 5
Loading…
↗
26
6E58571160
Mark, Caution
Loading…
↗
27
6K18362341
Mark 3
Loading…
↗
28
6K18362350
Mark 3
Loading…
↗
