VZ150TRD (2005)
GENERATOR

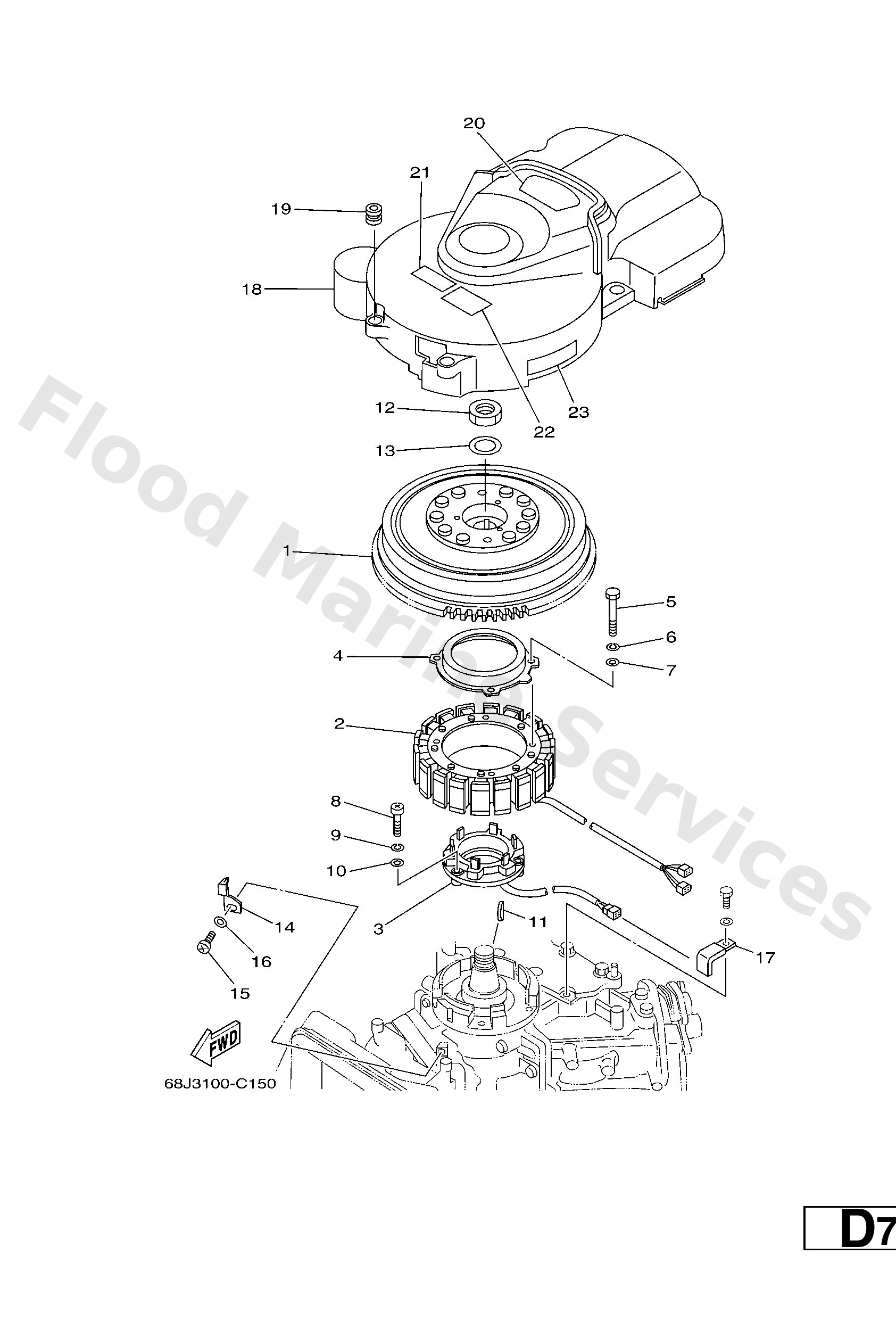

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
68F8145000
Rotor assembly
Loading…
↗
2
68F8141000
Stator assembly
Loading…
↗
3
60V8558000
Coil, pulser
Loading…
↗
4
61A8372100
Cover
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306100
Washer(6a1)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
9788505030
Ybs86-530 screw,panhead
Loading…
↗
9
9299505100
Ybs67-5 washer, spring
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
9028005015
Key, woodruff
Loading…
↗
12
9017024M22
Nut(61a)
Loading…
↗
13
9020125M02
Washer, plate(61a)
Loading…
↗
14
6E58133200
Plate, timing
Loading…
↗
15
9788506010
Screw pan head
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
9046508M23
Clamp (6h3)
Loading…
↗
18
68F8133710
-
Loading…
↗
19
6638231701
Damper, ignition coil
Loading…
↗
20
68F1448800
Label, caution
Loading…
↗
21
6A18362541
Mark 5
Loading…
↗
22
6A18362551
FOR CAN
Mark 5
Loading…
↗
23
6E58571140
FOR USA,OCE
Mark, Caution
Loading…
↗
23
6E58571150
FOR CAN
Mark, Caution
Loading…
↗
