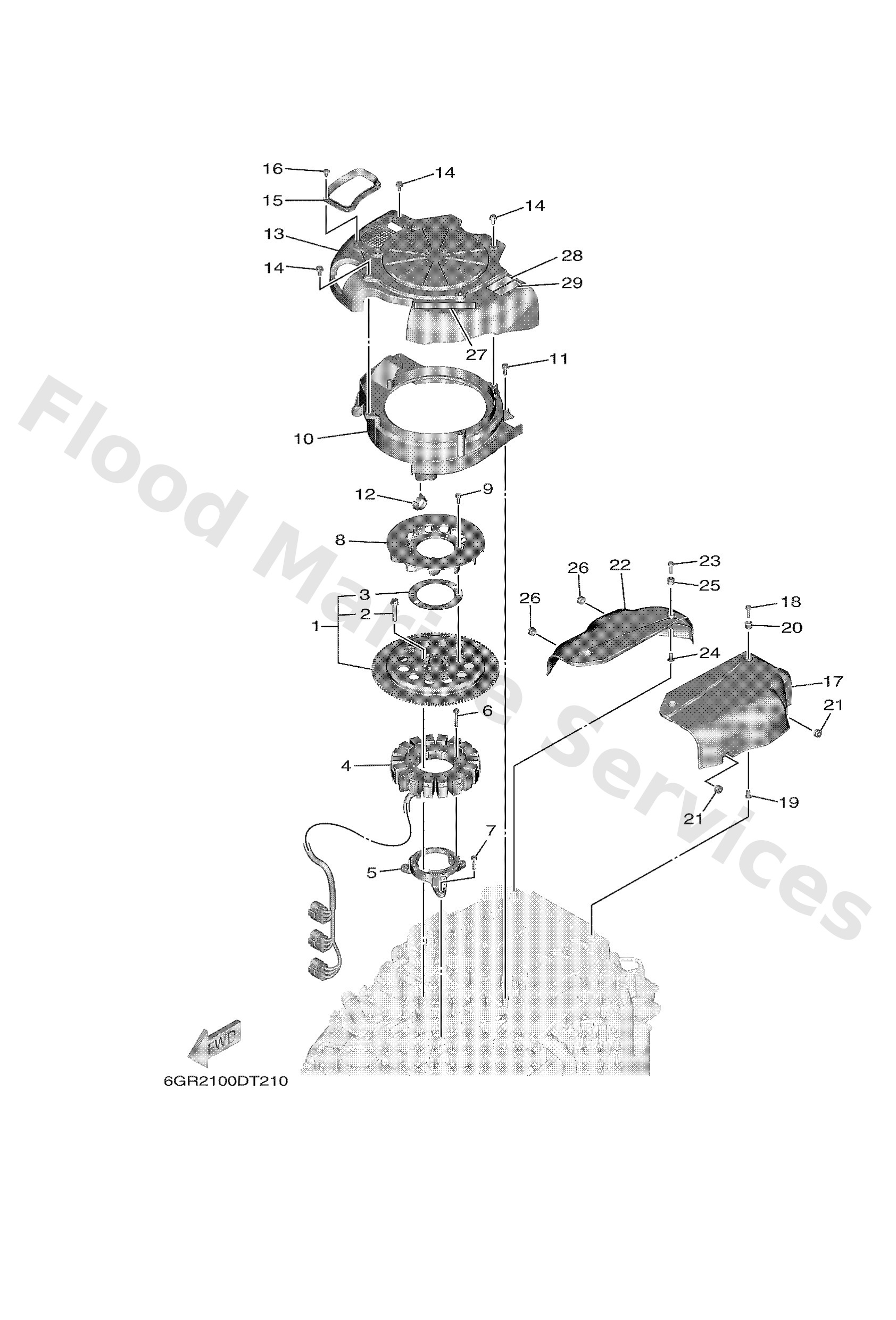

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6GRW814500
Rotor assembly with bolts
Loading…

↗
2
6EKW901000
Bolt set
Loading…

↗
3
6GR8398X00
Washer, plate
Loading…

↗
4
6GR8141000
Stator assembly
Loading…

↗
5
6GR8556100
Base, magneto
Loading…

↗
6
9502206035
Bolt, flange
Loading…

↗
7
95D9506030
Bolt, flange deep recess
Loading…

↗
8
6GR8558600
Fan
Loading…

↗
9
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
10
6GR1265100
Air shroud, cylinder 1
Loading…

↗
11
95D9506016
Bolt, flange deep recess
Loading…

↗
12
9046412183
Clamp(jn2)
Loading…

↗
13
6GR1265300
Air shroud, cylinder 3
Loading…

↗
14
95D9506012
Bolt, flange deep recess
Loading…

↗
15
6GR1265900
Damper, air shroud 2
Loading…

↗
16
9033805M03
Plug (6h1)
Loading…

↗
17
6GR8194200
Cover
Loading…

↗
18
95D9506025
Bolt, flange deep recess
Loading…

↗
19
9038706119
Collar
Loading…

↗
20
6A08231700
Damper, ignition coil
Loading…

↗
21
9048012314
Grommet(3aa)
Loading…

↗
22
6GR8163900
Cover
Loading…

↗
27
6GR1343760
Mark, caution
Loading…

↗
28
6EE8199440
Label, safety
Loading…

↗
29
6EE8199450
Label, safety
Loading…

↗
