Z150QETO (2002)
GENERATOR

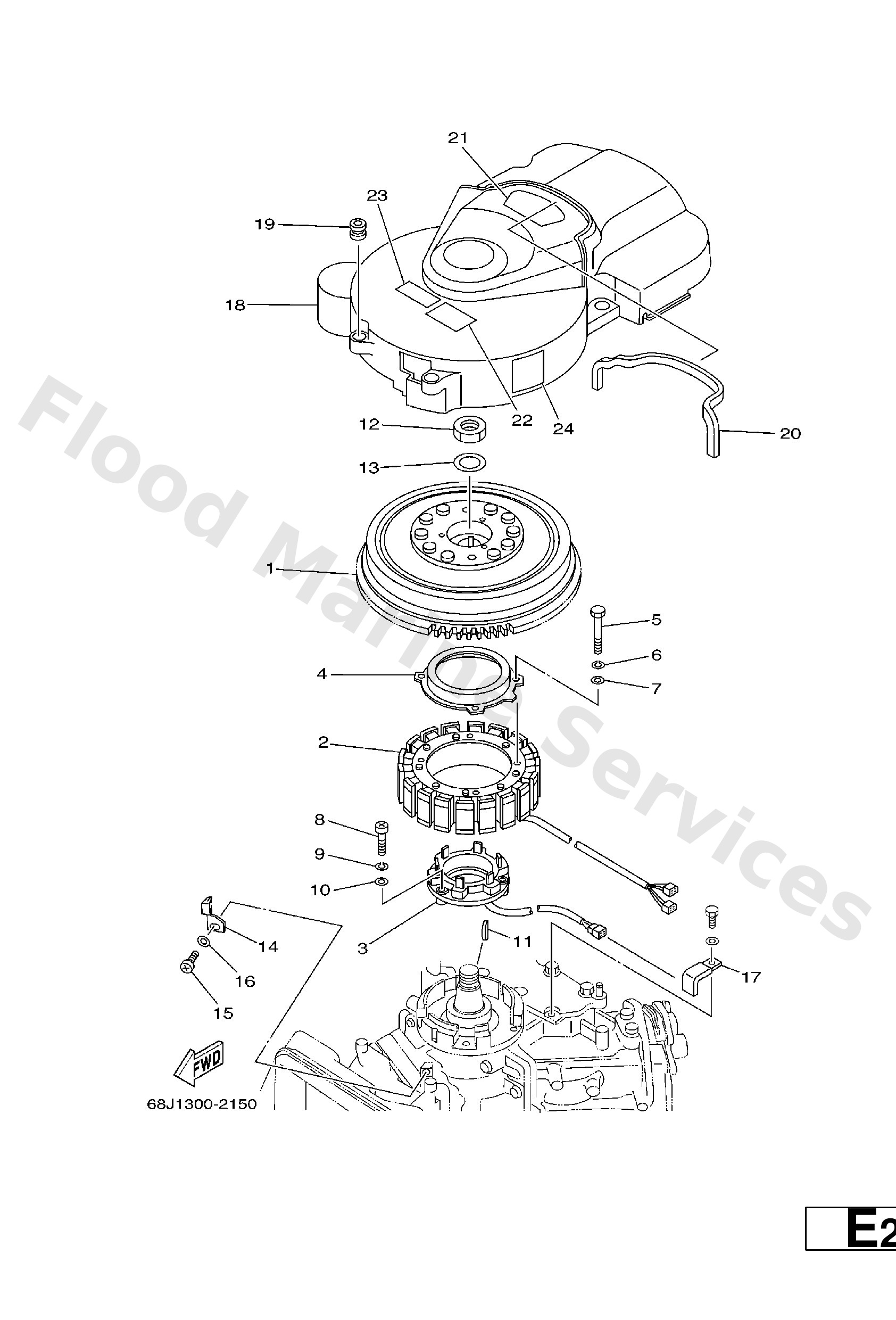

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
68F8145000
Rotor assembly
Loading…
↗
2
68F8141000
Stator assembly
Loading…
↗
3
68F8558000
Coil, pulser
Loading…
↗
4
61A--83721--00
Cover
Loading…
↗
5
97013--06035
Bolt(3rv)
Loading…
↗
6
92903--06100
Washer(6a1)
Loading…
↗
7
92903--06600
Washer, plain (646)
Loading…
↗
8
97885--05030
Ybs86-530 screw,panhead
Loading…
↗
9
92995--05100
Ybs67-5 washer, spring
Loading…
↗
10
92995--05600
Washer, plain (646)
Loading…
↗
11
90280--05015
Key, woodruff
Loading…
↗
12
90170--24M22
Nut(61a)
Loading…
↗
13
9020125M02
Washer, plate(61a)
Loading…
↗
14
6E5--81332--00
Plate, timing
Loading…
↗
15
97885--06010
Screw pan head
Loading…
↗
16
92995--06600
Washer, plain (646)
Loading…
↗
17
90465--08M23
Clamp (6h3)
Loading…
↗
18
68F8133700
-
Loading…
↗
19
663--82317--01
Damper, ignition coil
Loading…
↗
20
68F8554701
Damper
Loading…
↗
21
68F1448800
Label, caution
Loading…
↗
22
6A1--83625--51
Mark 5
Loading…
↗
23
6A1--83625--41
Mark 5
Loading…
↗
24
6E5--85711--60
12 −
Loading…
↗
