Z250FETO (2005)
GENERATOR

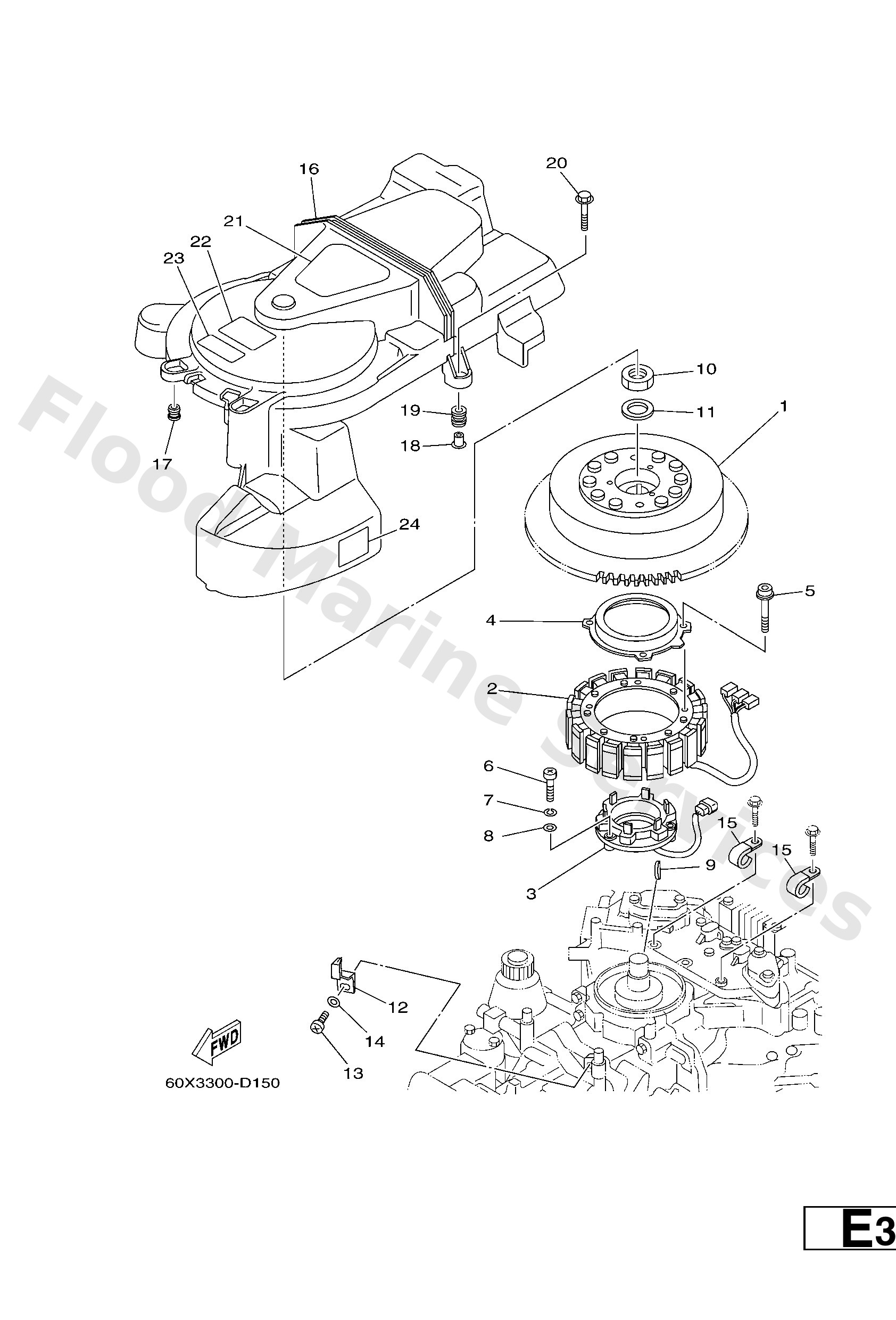

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
60V8145000
Rotor assembly
Loading…
↗
2
60V8141002
Stator assembly
Loading…
↗
3
60V8558010
Coil, pulser
Loading…
↗
4
61A8372100
Cover
Loading…
↗
5
9011006127
Bolt, hexagon socket head
Loading…
↗
6
9788505030
Ybs86-530 screw,panhead
Loading…
↗
7
9299505100
Ybs67-5 washer, spring
Loading…
↗
8
9299505600
Washer, plain (646)
Loading…
↗
9
9028005015
Key, woodruff
Loading…
↗
10
9017024M22
Nut(61a)
Loading…
↗
11
9020125M02
Washer, plate(61a)
Loading…
↗
12
60V8133200
Plate, Timing
Loading…
↗
13
9788506010
Screw pan head
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
9046506M86
Clamp
Loading…
↗
16
60V8133700
Cover, flywheel
Loading…
↗
17
6638231701
Damper, ignition coil
Loading…
↗
18
6244254200
Collar
Loading…
↗
19
6A08231700
Damper, ignition coil
Loading…
↗
20
9589506030
Bolt, flange deep recess
Loading…
↗
21
60V1448800
Label, caution
Loading…
↗
22
6A18362551
Mark 5
Loading…
↗
23
6A18362541
Mark 5
Loading…
↗
24
6E58571160
Mark, Caution
Loading…
↗
