E55CMH (2003)
GENERATOR 2

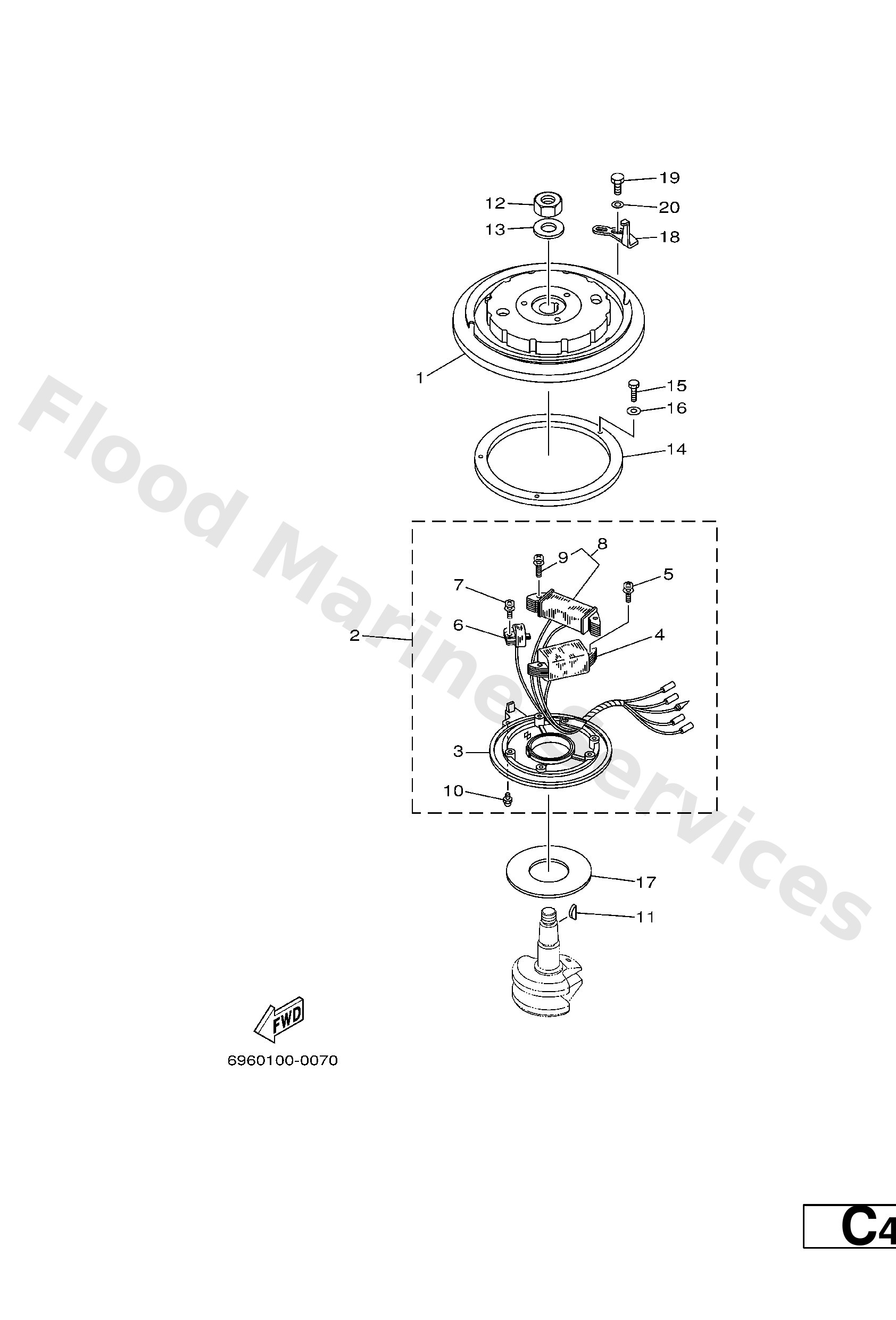

Diagram: GENERATOR 2
Parts List
Reference
Description
Price
1
696−85550−F1
Rotor ass'y
Loading…
↗
2
696−85560−F0
Base ass'y
Loading…
↗
3
696−85561−F0
Base, magneto
Loading…
↗
4
6E7−85520−70
Coil assembly
Loading…
↗
5
90159−05039
Screw panhead (695)
Loading…
↗
6
6E7−85580−70
Pulser coil ass'y
Loading…
↗
7
90159−05038
Screw, With Washer
Loading…
↗
8
696−81303−F0
Lighting coil ass'y
Loading…
↗
9
90159−05040
Screw, pan head(4my)
Loading…
↗
10
663−85518−00
Joint, ball
Loading…
↗
11
90280−05015
Key, woodruff
Loading…
↗
12
90170−20137
Nut, hexagon(663)
Loading…
↗
13
90201−21M18
Washer, plate (663)
Loading…
↗
14
663−41612−00
Retainer, magneto base 2
Loading…
↗
15
97013−06020
Bolt(62y)
Loading…
↗
16
92903−06600
Washer, plain (646)
Loading…
↗
17
663−41619−00
Washer, magneto 2
Loading…
↗
18
663−81332−01
Plate, timming
Loading…
↗
19
97095−06016
Bolt, hexagon deep recess
Loading…
↗
20
92995−06600
Washer, plain (646)
Loading…
↗
