INTHDP/HDL (2014)
GIMBAL HOUSING 1

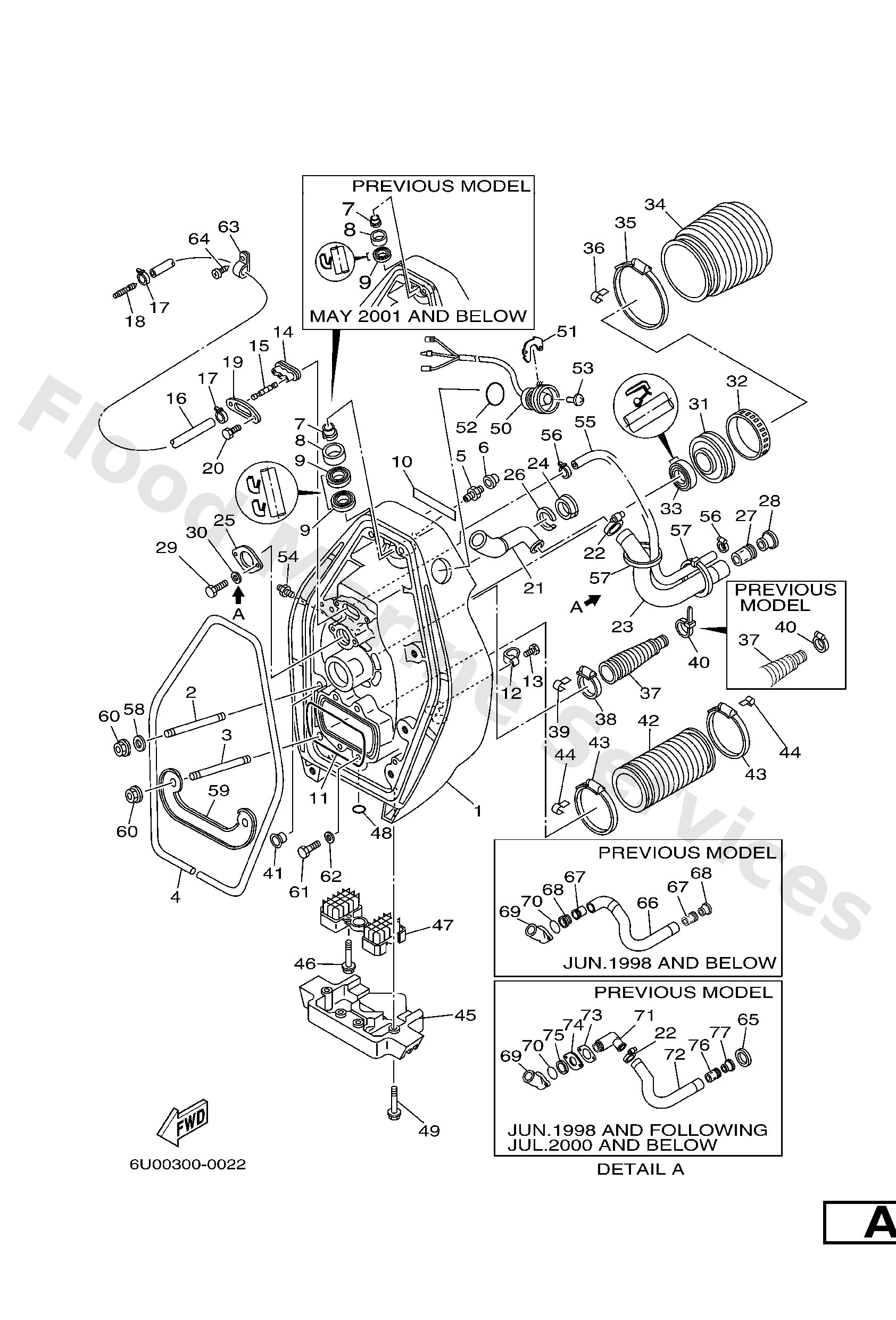

Diagram: GIMBAL HOUSING 1
Parts List
Reference
Description
Price
2
9011612M37
Bolt, stud
Loading…
↗
3
9011612M36
Bolt, stud
Loading…
↗
4
6U04583400
Gasket, transom
Loading…
↗
5
9370009M00
Nipple, grease(6t4)
Loading…
↗
6
6634511900
Cap, grease nipple
Loading…
↗
7
9038916M00
Bush(6t4)
Loading…
↗
8
9038432M19
MAY 2001 AND BELOW
Bush, bimetal formed(6u0)
Loading…
↗
8
9038432001
JUN.2001 AND FOLLOWING
Bush, bimetal formed(6u0)
Loading…
↗
9
9310432M08
MAY 2001 AND BELOW
Oil seal(6u0)
Loading…
↗
9
9310132001
JUN.2001 AND FOLLOWING
Oil seal(6u0)
Loading…
↗
10
6U04278200
FOR MMS
Graphic, rear
Loading…
↗
10
6U04278210
FOR DBN1
Graphic, rear
Loading…
↗
11
6U01461300
Gasket, exhaust pipe
Loading…
↗
12
9046413M39
Clamp(6u0)
Loading…
↗
13
9011906M46
Bolt, with washer (697)
Loading…
↗
14
9048020M45
Grommet(6t4)
Loading…
↗
15
6T48365200
Connector
Loading…
↗
16
9044507M18
Hose(62t)
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
6E58355800
End, nipple
Loading…
↗
19
6T44583H01
Set plate, rubber seal
Loading…
↗
20
9709006012
Bolt(gh1)
Loading…
↗
21
6U04436110
C AUG.2000 AND FOLLOWING
Tube, water
Loading…
↗
22
9045032097
C JUL.1998 AND FOLLOWING
Hose clamp assembly
Loading…
↗
23
6U04583M10
C AUG.2000 AND FOLLOWING
Hose, water 1
Loading…
↗
24
6U04436500
C AUG.2000 AND FOLLOWING
Damper, water seal
Loading…
↗
25
6U04437310
C AUG.2000 AND FOLLOWING
Set plate, water tube
Loading…
↗
26
6U04431400
C AUG.2000 AND FOLLOWING
Spacer
Loading…
↗
27
6U01258110
C AUG.2000 AND FOLLOWING
Joint, hose 1
Loading…
↗
28
6U01258210
C AUG.2000 AND FOLLOWING
Joint, hose 2
Loading…
↗
29
9709006025
Bolt
Loading…
↗
30
9299006600
Washer, plain (646)
Loading…
↗
31
93399999U0
Bearing(6t4)
Loading…
↗
32
6T44584200
Plate, gimbal bearing
Loading…
↗
33
9310235M30
Oil seal(6t4)
Loading…
↗
34
6U04586700
APR.1999 AND BELOW
Bellows
Loading…
↗
34
6U04586701
MAY.1999 AND FOLLOWING
Bellows
Loading…
↗
35
9045090M10
Hose clamp assembly(6t4)
Loading…
↗
36
6U08272J00
Plate, earth 1
Loading…
↗
37
6T44839200
Boot, remocon cable
Loading…
↗
38
9045035M11
Hose clamp assembly(6t4)
Loading…
↗
40
9046510M12
Clamp
Loading…
↗
40
9046513M11
Clamp (6e5)
Loading…
↗
41
6T44834100
Sleeve, shift
Loading…
↗
42
6T44114500
Bellows, exhaust
Loading…
↗
43
9045070M13
Hose clamp assembly(6t4)
Loading…
↗
45
6U04525100
Anode
Loading…
↗
46
9011906M96
Bolt, with washer(6g8)
Loading…
↗
47
6U04583200
Cover, transom plate
Loading…
↗
48
9321020256
O-ring (688)
Loading…
↗
50
6T48256300
Trim & tilt switch assembly
Loading…
↗
51
6T48361400
Bracket
Loading…
↗
52
9321039M89
O-ring(6h2)
Loading…
↗
53
9015905M12
Screw, with washer(6t4)
Loading…
↗
55
9044507M30
Hose (l570)
Loading…
↗
57
9046407M40
Clamp(6u0)
Loading…
↗
58
9299012200
Ybs66-12 washer,plain
Loading…
↗
59
6U04583300
Plate, transom 2
Loading…
↗
60
9578012300
Nut, nylon (6f2)
Loading…
↗
61
9707510030
Bolt
Loading…
↗
62
9299510600
Washer, plate
Loading…
↗
63
9046411M18
Clamp(6e5)
Loading…
↗
64
9778050112
Screw, tapping(61a)
Loading…
↗
65
6U04387100
Ring, back up
Loading…
↗
66
6U04583M00
C JUN.1998 AND BELOW
Hose, water 1
Loading…
↗
67
6U01258100
C JUN.1998 AND BELOW
Joint, hose 1
Loading…
↗
68
6U01258200
C JUN.1998 AND BELOW
Joint, hose 2
Loading…
↗
69
6U01257300
C JUL.2000 AND BELOW
Flange, hose jt. 1
Loading…
↗
70
9321037ME9
C JUL.2000 AND BELOW
O-ring(6u0)
Loading…
↗
71
6U04436100
C JUL.1998 AND FOLLOWING
Tube, water
Loading…
↗
72
6U04583M01
C JUL.1998 AND FOLLOWING
Hose, water 1
Loading…
↗
73
6U04437800
C JUL.1998 AND FOLLOWING
Gasket, water tube
Loading…
↗
74
6U04437300
C JUL.1998 AND FOLLOWING
Set plate, water tube
Loading…
↗
75
9017024426
C JUL.1998 AND FOLLOWING
Nut
Loading…
↗
