150AETOL (2001)
Generator

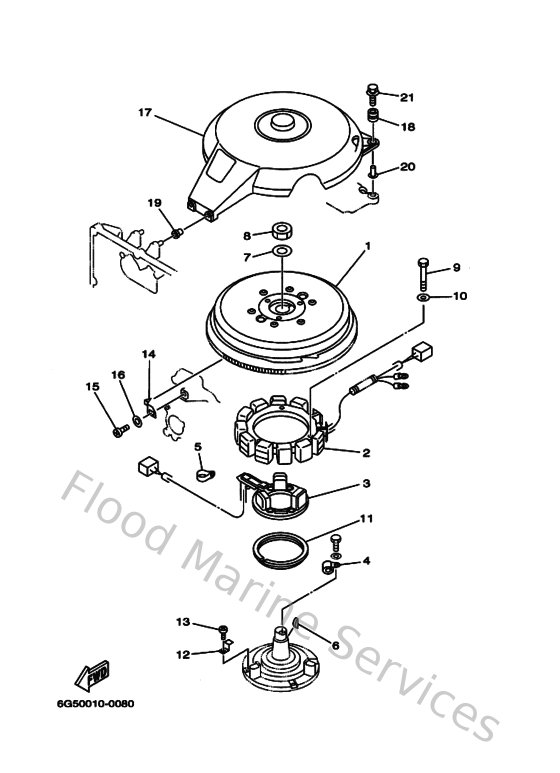

Diagram: Generator
Parts List
Reference
Description
Price
1
6G6855500200
Rotor assembly
Loading…
↗
2
6G6855100100
Stator assembly
Loading…
↗
3
6G6855800000
Coil, pulser
Loading…
↗
4
9046506M8600
Clamp
Loading…
↗
6
902800501500
Key, woodruff
Loading…
↗
7
9020121M1800
Washer, plate (663)
Loading…
↗
8
901702013700
Nut, hexagon(663)
Loading…
↗
9
970130606000
Bolt, hexagon
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
688416110000
Retainer, magneto base 1
Loading…
↗
12
688416120000
Retainer, magneto base 2
Loading…
↗
13
978800601800
Screw, pan head(6e5)
Loading…
↗
14
6E5813320000
Plate, timing
Loading…
↗
15
978850601000
Screw pan head
Loading…
↗
16
929950660000
Washer, plain (646)
Loading…
↗
17
6G5813370000
Cover, flywheel
Loading…
↗
18
6G5823170000
Damper
Loading…
↗
19
6A0823170000
Damper, ignition coil
Loading…
↗
20
624425420000
Collar
Loading…
↗
21
9011906M6500
Bolt, with washer
Loading…
↗
