15FMC (1999)
Generator

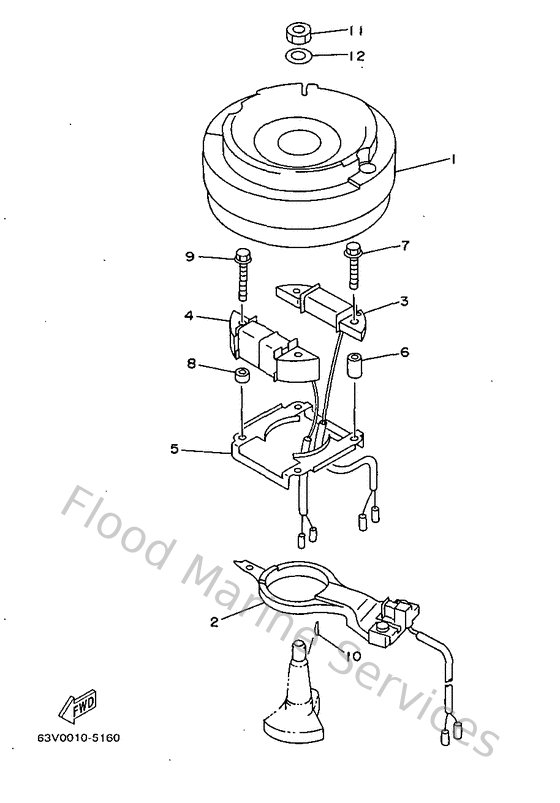

Diagram: Generator
Parts List
Reference
Description
Price
1
63V855501000
Rotor assembly
Loading…
↗
2
63V855800000
Coil, pulser
Loading…
↗
3
63V855200000
Coil, charge
Loading…
↗
4
63V855330000
Coil, lighting
Loading…
↗
5
63V416110000
Retainer, magneto base
Loading…
↗
6
903870655300
Collar (1m1)
Loading…
↗
7
9010506M6800
Bolt, washer based(63v)
Loading…
↗
8
9038706M2400
Collar(6r8)
Loading…
↗
9
9010506M6900
Bolt, washer based(63v)
Loading…
↗
10
902800501300
Key, woodruff
Loading…
↗
11
901701206600
Nut, hexagon 6481155500
Loading…
↗
12
902011247200
Washer, plate (4n0)
Loading…
↗
