20DMHO (1995)
Generator

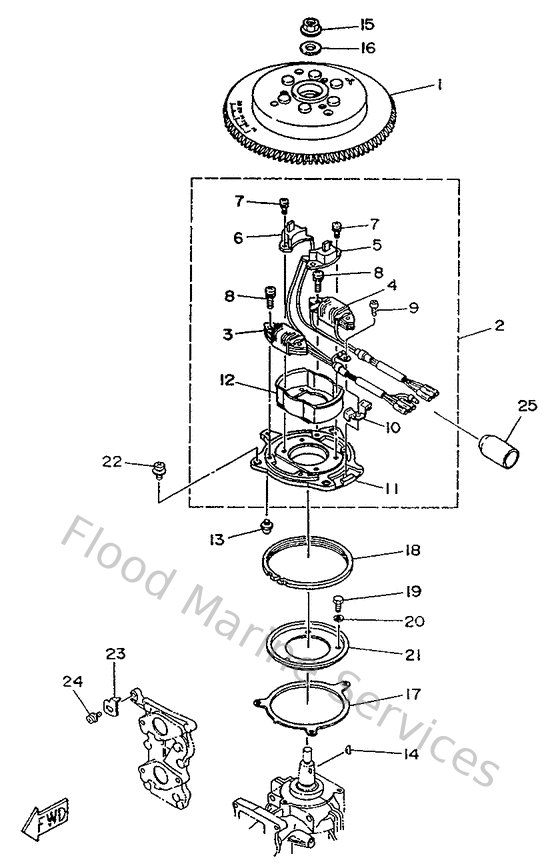

Diagram: Generator
Parts List
Reference
Description
Price
1
6L2855500000
Rotor assembly
Loading…
↗
2
6L2455601000
Gear
Loading…
↗
3
6L2855201000
Coil, charge
Loading…
↗
4
6L2855331000
Coil, lighting
Loading…
↗
5
6L2855801000
Coil, pulser
Loading…
↗
6
6L2855802000
Coil, pulser
Loading…
↗
7
985170401200
Screw, pan head
Loading…
↗
8
976070612500
Screw, pan head (76t)
Loading…
↗
9
985010400600
Screw, pan head
Loading…
↗
10
6E9813287000
Clamp
Loading…
↗
11
6L2855611000
Base, magneto
Loading…
↗
12
61N855370000
Cover
Loading…
↗
13
663855180000
Joint, ball
Loading…
↗
14
902801605300
Key, woodruff
Loading…
↗
15
9017912M0400
Nut, flange
Loading…
↗
16
9020113M4200
Washer (694)
Loading…
↗
17
6G1416110000
Retainer, magneto base 1
Loading…
↗
18
6N0G16130000
Plate, base friction
Loading…
↗
19
970950601200
Bolt(gh1)
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
6G1416120000
Retainer, magneto base
Loading…
↗
22
979850521000
Screw, With Washer
Loading…
↗
23
6L2813320000
Plate, timing
Loading…
↗
25
6L2825990100
Cover, connecter
Loading…
↗
