Yamaha Outboard Parts - Generator - 25JETO (1996) | Flood Marine

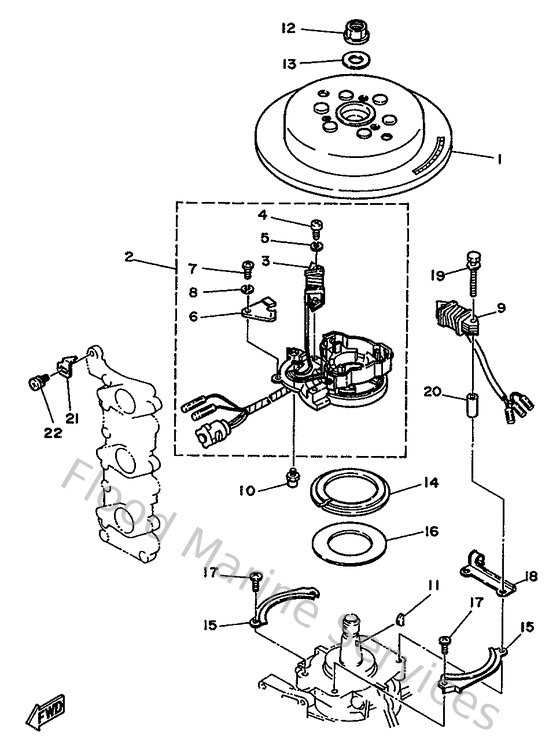

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
6J885550A000
Rotor Assembly
Loading…

↗
2
6J885510A000
Stator Assembly
Loading…

↗
3
6H4855200000
Coil, Charge
Loading…

↗
6
6H4855480000
Clamp, cord
Loading…

↗
9
6H485533A000
Coil, Lighting
Loading…

↗
10
663855180000
Joint, ball
Loading…

↗
14
6H4416111000
Retainer, magneto base
Loading…

↗
15
6J8416150000
Stopper, magneto base
Loading…

↗
16
6J8416180000
Washer, magneto
Loading…

↗
18
6J8855480000
Holder
Loading…

↗
