25JETO (2001)
Generator

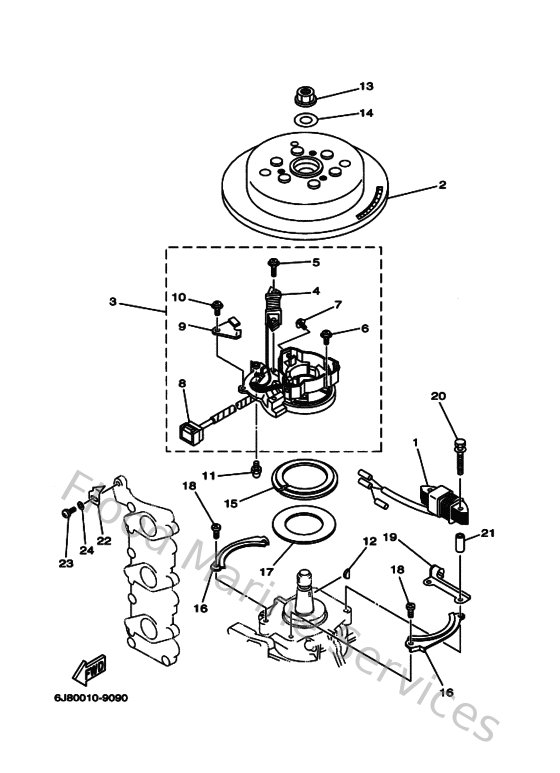

Diagram: Generator
Parts List
Reference
Description
Price
1
6H485533A100
Coil, lighting
Loading…
↗
2
6J885550F100
Rotor assembly
Loading…
↗
3
6H485510F100
Stator assembly
Loading…
↗
4
6H4855200100
Coil, charge
Loading…
↗
5
979020612000
Screw, with washer
Loading…
↗
6
979020411200
Screw, with washer
Loading…
↗
7
979020410600
Screw, with washer
Loading…
↗
8
9E4710920500
Housing,m-9-b 5pcs(61a)
Loading…
↗
9
6H4855480000
Clamp, cord
Loading…
↗
10
979020540800
Screw, with washer
Loading…
↗
11
663855180000
Joint, ball
Loading…
↗
12
902800501300
Key, woodruff
Loading…
↗
13
9017916M0500
Nut (689)
Loading…
↗
14
9020116M4400
Washer (689)
Loading…
↗
15
6H4416111000
Retainer, magneto base
Loading…
↗
16
6J8416150000
Stopper, magneto base
Loading…
↗
17
6J8416180000
Washer, magneto
Loading…
↗
18
978800601200
Screw, pan head(62j)
Loading…
↗
19
6J8855480000
Holder
Loading…
↗
20
901190626000
BOLT
Loading…
↗
21
9038706M8100
Collar
Loading…
↗
22
6J8813320000
Plate, timing
Loading…
↗
23
978850501000
Screw, pan head(62x)
Loading…
↗
24
929950560000
Washer, plain (646)
Loading…
↗
