25VMH (1998)
Generator

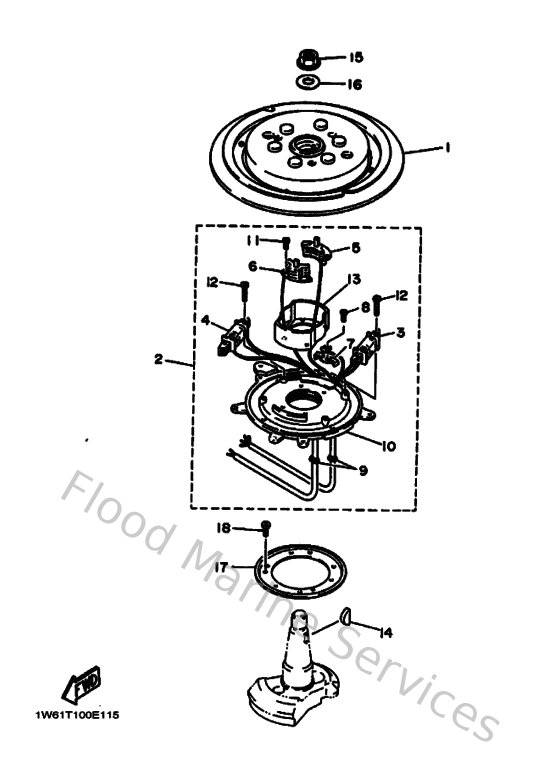

Diagram: Generator
Parts List
Reference
Description
Price
1
61N855501000
Rotor assembly
Loading…
↗
2
61N855601000
Base Assembly
Loading…
↗
3
61N855411900
Coil, charge
Loading…
↗
4
61N813130900
Coil, lighting 1
Loading…
↗
5
61N855430900
Coil, pulser
Loading…
↗
6
61N855431900
Coil, pulser
Loading…
↗
7
6E9813287000
Clamp
Loading…
↗
8
985170400600
Screw, pan head(3xp)
Loading…
↗
9
6E9855167000
Grommet
Loading…
↗
11
985170401200
Screw, pan head
Loading…
↗
12
976070612500
Screw, pan head (76t)
Loading…
↗
13
61N855370000
Cover
Loading…
↗
14
902800504900
Key, woodruff (12r)
Loading…
↗
15
9017916M0500
Nut (689)
Loading…
↗
16
9020116M4400
Washer (689)
Loading…
↗
17
689416120100
Retainer, magneto base
Loading…
↗
