2BMH (1996)
Generator

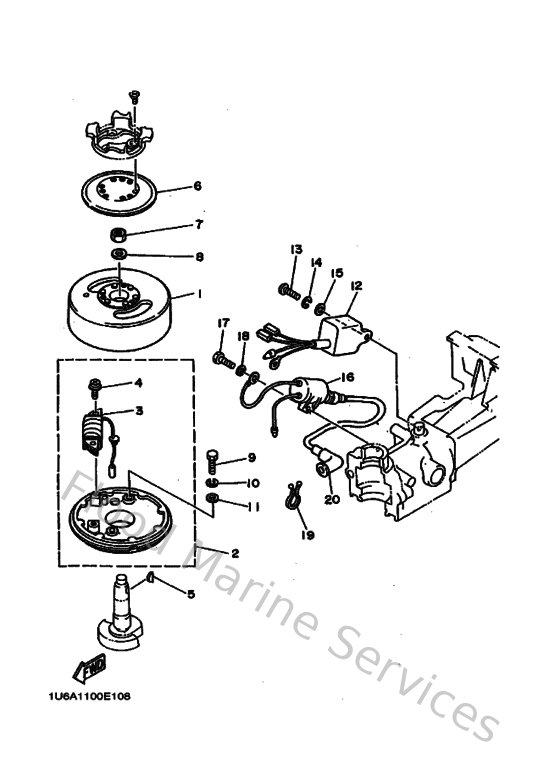

Diagram: Generator
Parts List
Reference
Description
Price
1
6A1855500000
Rotor assembly
Loading…
↗
2
6A1855600000
Base assembly
Loading…
↗
3
6A1855200000
Coil, charge
Loading…
↗
4
978850502000
Screw, pan head (e22)
Loading…
↗
5
9028004M0600
Key, woodruff(6a1)
Loading…
↗
6
6A1813620000
Cover, hole 1
Loading…
↗
7
9017010M3300
Nut(6a1)
Loading…
↗
8
929901010000
Ybs67-10 washer, spring
Loading…
↗
9
970950603000
Bolt(jf7)
Loading…
↗
10
929950610000
Washer(6a1)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6A1855400100
C.d.i. unit assembly
Loading…
↗
13
978850601600
Screw, pan head(6b0)
Loading…
↗
16
6A1855700000
Ignition coil assembly
Loading…
↗
17
970800602000
Bolt(7u8)
Loading…
↗
19
904651814700
Clamp
Loading…
↗
20
663823700100
Plug cap assembly
Loading…
↗
