3AMH (1994)
Generator

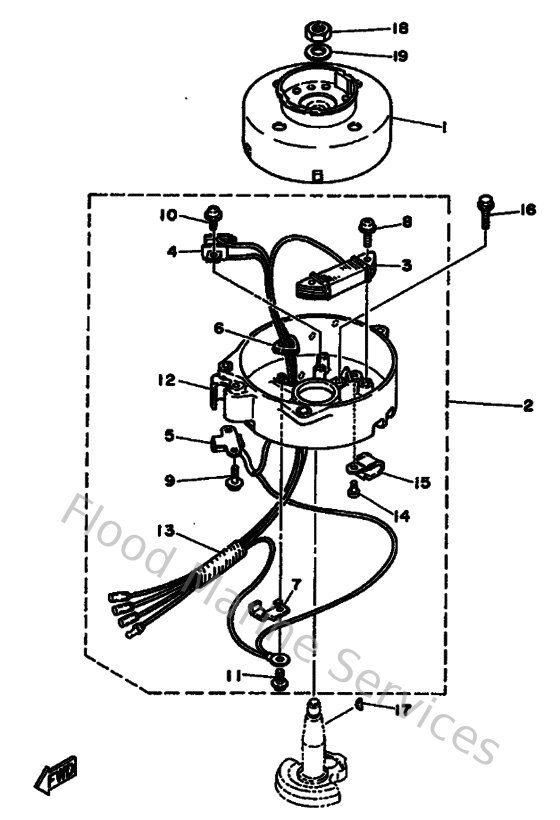

Diagram: Generator
Parts List
Reference
Description
Price
1
6L585550M000
Rotor assembly
Loading…
↗
2
6L585560M100
Base assembly
Loading…
↗
3
6E0855207000
Charge coil ass'y
Loading…
↗
4
6L585595M000
Coil, pulser
Loading…
↗
5
6L585592M000
Pulser coil assembly
Loading…
↗
6
6E0813367000
Grommet
Loading…
↗
7
6E0813287000
Clamp
Loading…
↗
8
985070501600
Screw, pan head(jj6)
Loading…
↗
9
976070521200
Screw,w/washer
Loading…
↗
10
985070401000
Screw, pan head(6g8)
Loading…
↗
12
6L5157710194
Stay 1
Loading…
↗
13
9044610M0100
Tube (6e5)
Loading…
↗
14
985800500800
Screw, pan head (7g3)
Loading…
↗
15
9046510M3400
Clamp(6l5)
Loading…
↗
16
958950601600
Bolt, flange deep recess
Loading…
↗
17
9028004M0600
Key, woodruff(6a1)
Loading…
↗
18
901701011300
Nut, crank shaft (650)
Loading…
↗
19
90201102G900
Washer, plate (26h)
Loading…
↗
