40QMH (1995)
Generator

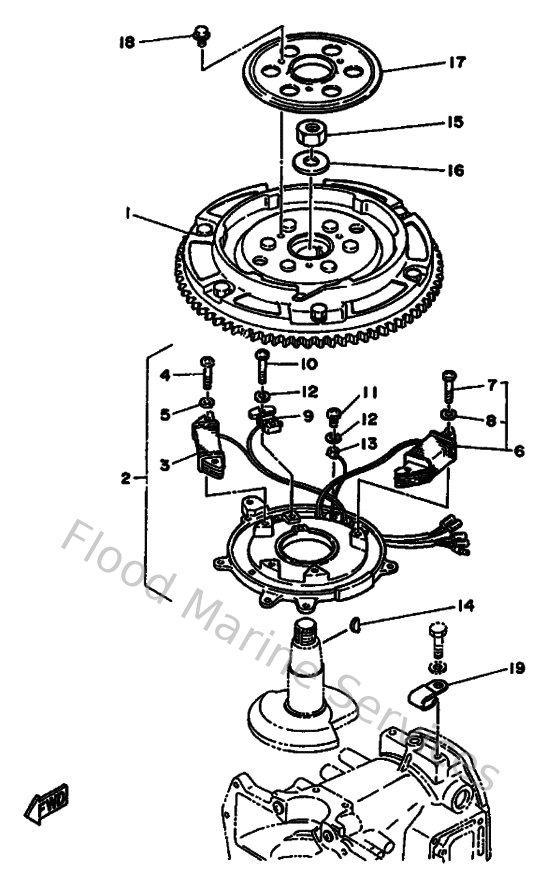

Diagram: Generator
Parts List
Reference
Description
Price
3
689813114000
Coil, source
Loading…
↗
4
985800552500
Screw, panhead (a93)
Loading…
↗
5
929010510000
Ybs67-5 washer, spring
Loading…
↗
6
6A081303A000
Lighting Coil Assembly
Loading…
↗
8
929900510000
Ybs67-5 washer, spring
Loading…
↗
9
689855804000
Coil, Pulser
Loading…
↗
10
985110402500
Screw, pan head
Loading…
↗
11
985170400600
Screw, pan head(3xp)
Loading…
↗
12
929010410000
Ybs67-4 washer, spring
Loading…
↗
14
902800504900
Key, woodruff (12r)
Loading…
↗
15
901702013700
Nut, hexagon(663)
Loading…
↗
16
9020121M1800
Washer, plate (663)
Loading…
↗
18
9010508M1000
Bolt (6a0)
Loading…
↗
19
9046508M2900
Clamp
Loading…
↗
