55BM (2000)
Generator

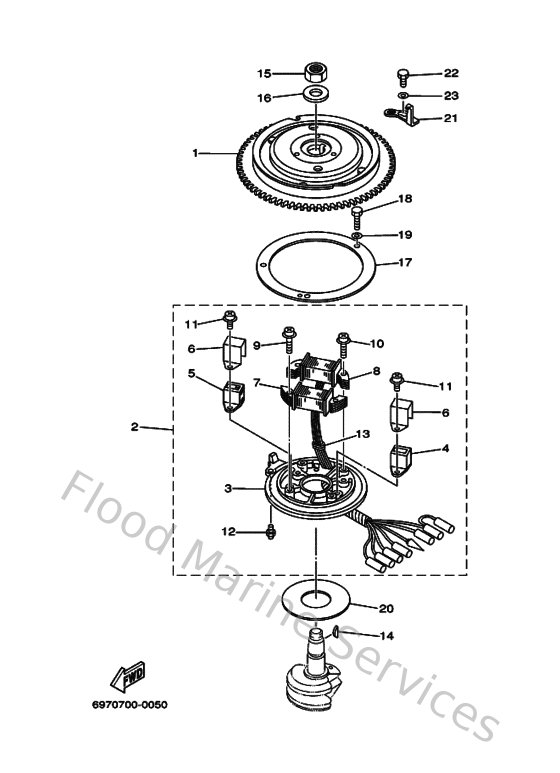

Diagram: Generator
Parts List
Reference
Description
Price
1
697855500000
Rotor assembly
Loading…
↗
2
697855600100
Base assembly
Loading…
↗
3
697855610000
Base, magneto
Loading…
↗
4
697855800000
Coil, pulser
Loading…
↗
5
697855801000
Coil, pulser
Loading…
↗
6
6F085599A000
Cover
Loading…
↗
7
697855200200
Coil, charge
Loading…
↗
8
697855330000
Coil, lighting
Loading…
↗
9
976020513000
Screw, Pan Head With Washer
Loading…
↗
10
976020513200
Screw, pan head with washer
Loading…
↗
11
976020511400
Screw, pan head with washer
Loading…
↗
12
663855180000
Joint, ball
Loading…
↗
13
904800615800
Grommet (663)
Loading…
↗
14
902800501500
Key, woodruff
Loading…
↗
15
901702013700
Nut, hexagon(663)
Loading…
↗
16
9020121M1800
Washer, plate (663)
Loading…
↗
17
663416120000
Retainer, magneto base 2
Loading…
↗
18
970130602000
Bolt(62y)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
663416190000
Washer, magneto 2
Loading…
↗
21
697813320000
Plate, timing
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
23
929950660000
Washer, plain (646)
Loading…
↗
