70BETO (2000)
Generator

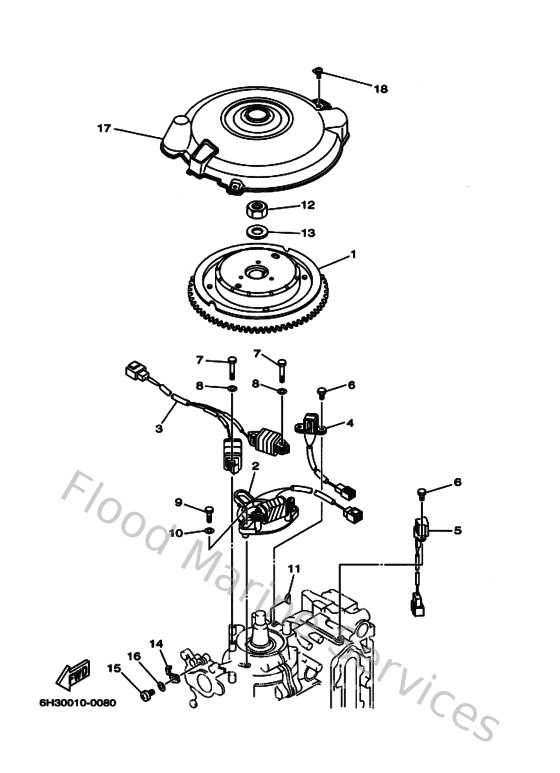

Diagram: Generator
Parts List
Reference
Description
Price
1
6H2855500000
Rotor assembly
Loading…
↗
2
6H2855200100
Coil, charge
Loading…
↗
3
6H2855330100
Coil, lighting
Loading…
↗
4
6H2855800100
Coil, pulser
Loading…
↗
5
6H2858950100
Crank position sender
Loading…
↗
6
970950501200
Bolt, hexagon
Loading…
↗
7
970800603500
Bolt(j52)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
970950602500
Bolt
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
902800501500
Key, woodruff
Loading…
↗
12
901702013700
Nut, hexagon(663)
Loading…
↗
13
9020121M1800
Washer, plate (663)
Loading…
↗
14
6E5813320000
Plate, timing
Loading…
↗
15
979850621000
Screw pan head
Loading…
↗
17
6H3813370100
Cover, flywheel
Loading…
↗
18
9015906M2300
Screw, with washer(6b0)
Loading…
↗
