75AE (2001)
Generator

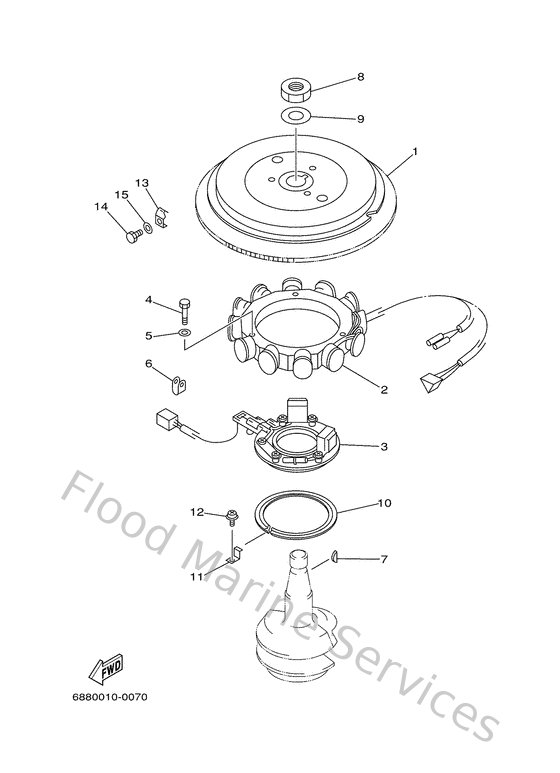

Diagram: Generator
Parts List
Reference
Description
Price
1
688855500000
Rotor assembly
Loading…
↗
2
688855100100
Stator assembly
Loading…
↗
3
688855800000
Coil, pulser
Loading…
↗
4
970130603000
Bolt
Loading…
↗
5
929030660000
Washer, plain (646)
Loading…
↗
7
902800501500
Key, woodruff
Loading…
↗
8
901702013700
Nut, hexagon(663)
Loading…
↗
9
9020121M1800
Washer, plate (663)
Loading…
↗
10
688416110000
Retainer, magneto base 1
Loading…
↗
11
688416120000
Retainer, magneto base 2
Loading…
↗
12
9015906M3100
Screw, with washer
Loading…
↗
13
688813320100
Plate, timing
Loading…
↗
14
970950601000
Bolt
Loading…
↗
15
929950660000
Washer, plain (646)
Loading…
↗
