E40XMH (2001)
Generator

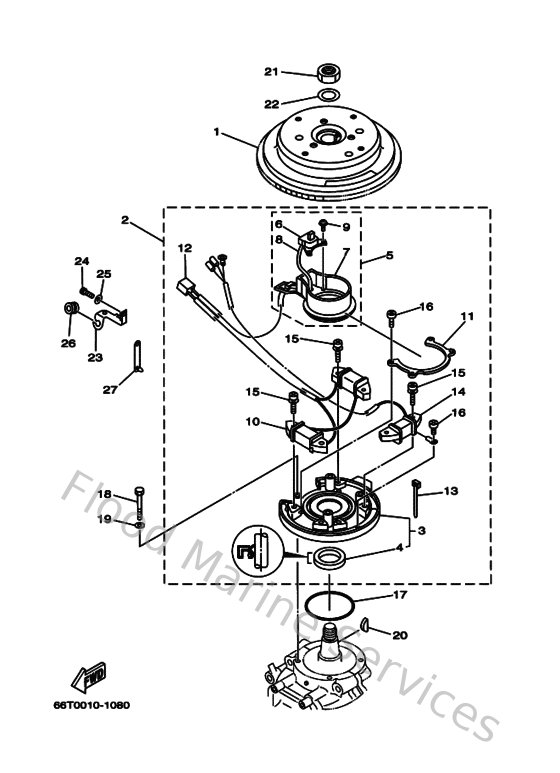

Diagram: Generator
Parts List
Reference
Description
Price
1
66T855501000
Rotor assembly
Loading…
↗
2
66T855600100
Base assembly
Loading…
↗
3
66T855610000
Base, magneto
Loading…
↗
4
931023500800
Oil seal
Loading…
↗
5
66T855800000
Pulser coil assembly
Loading…
↗
6
66T855960000
Coil, pulser 1
Loading…
↗
7
66T855820000
Attachment, pulser
Loading…
↗
8
66T855150000
Lead wire assembly
Loading…
↗
9
979020410800
Screw, with washer
Loading…
↗
10
66T855200000
Coil, charge
Loading…
↗
11
66T416110000
Retainer, magneto base
Loading…
↗
12
9E4710430500
Housing, connector (f-4-b)
Loading…
↗
13
66T813280000
Clamp
Loading…
↗
14
66T855330000
Coil, lighting
Loading…
↗
15
985170602500
Screw, pan head (76t)
Loading…
↗
16
978020400600
Screw, pan head(3xp)
Loading…
↗
17
9321075M5100
O-ring (6f5)
Loading…
↗
18
970950604000
Bolt (682)
Loading…
↗
19
929950660000
Washer, plain (646)
Loading…
↗
20
902800504900
Key, woodruff (12r)
Loading…
↗
21
901702013700
Nut, hexagon(663)
Loading…
↗
22
9020121M1800
Washer, plate (663)
Loading…
↗
23
9046515M7400
Clamp
Loading…
↗
24
970950601600
Bolt, hexagon deep recess
Loading…
↗
26
9048010M7100
Grommet
Loading…
↗
