E60HELH (2000)
Generator

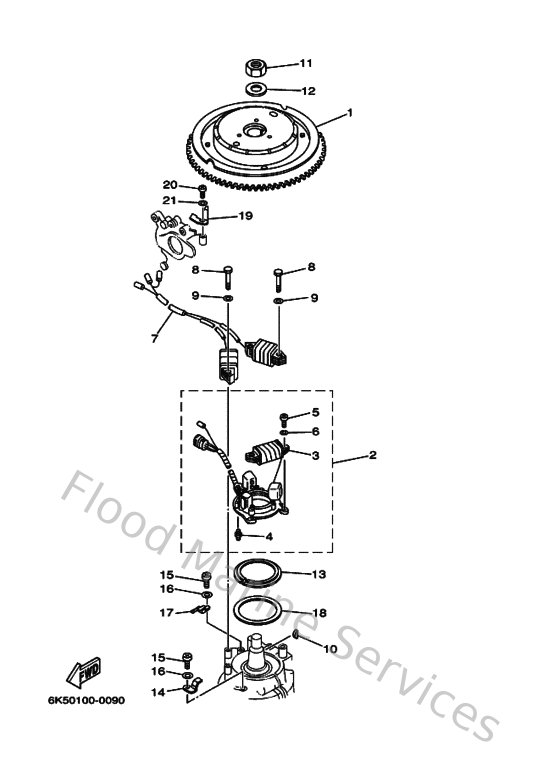

Diagram: Generator
Parts List
Reference
Description
Price
1
6K585550A000
Rotor assembly
Loading…
↗
2
6H385510A100
Stator assembly
Loading…
↗
3
6H3855200000
Charge coil assembly
Loading…
↗
4
663855180000
Joint, ball
Loading…
↗
5
985020501600
Screw, pan head(6b0)
Loading…
↗
6
929900510000
Ybs67-5 washer, spring
Loading…
↗
7
6H3855330000
Coil, lighting
Loading…
↗
8
970130603000
Bolt
Loading…
↗
9
929030660000
Washer, plain (646)
Loading…
↗
10
902800504900
Key, woodruff (12r)
Loading…
↗
11
901702013700
Nut, hexagon(663)
Loading…
↗
12
9020121M1800
Washer, plate (663)
Loading…
↗
13
6H4416110000
Retainer, magneto base
Loading…
↗
14
6H3416120000
Retainer, magneto base 2
Loading…
↗
15
978850601200
Screw, pan head(62j)
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
6H3416122000
Retainer, magneto base
Loading…
↗
18
6K5416180000
Washer, magneto
Loading…
↗
19
6K5813320000
Plate, Timing
Loading…
↗
20
978850601000
Screw pan head
Loading…
↗
21
929950660000
Washer, plain (646)
Loading…
↗
