F15AEP (2001)
Generator

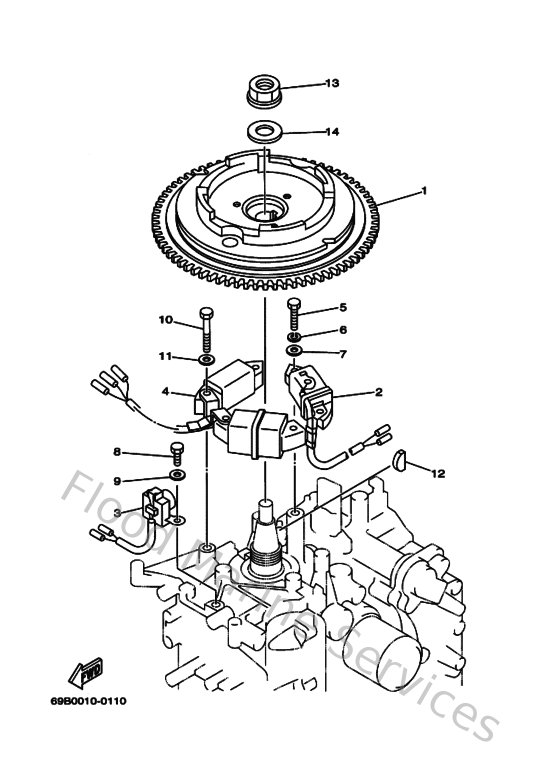

Diagram: Generator
Parts List
Reference
Description
Price
1
66M855501000
Rotor assembly
Loading…
↗
2
66M855200000
Coil, charge
Loading…
↗
3
66M855800000
Coil, pulser
Loading…
↗
4
66M855331000
Coil, Lighting
Loading…
↗
5
970950602500
Bolt
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
929950660000
Washer, plain (646)
Loading…
↗
8
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
970950604000
Bolt (682)
Loading…
↗
12
902800501300
Key, woodruff
Loading…
↗
13
9017916M0500
Nut (689)
Loading…
↗
14
9020116M4400
Washer (689)
Loading…
↗
