F20AM (1998)
Generator

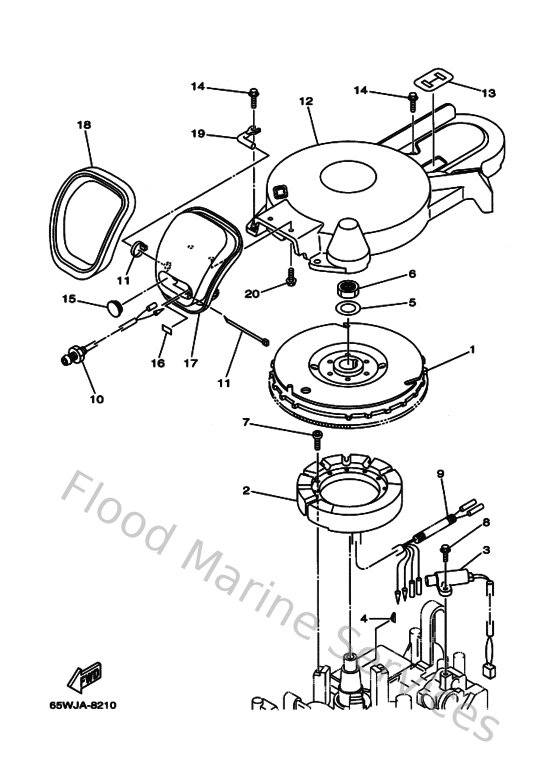

Diagram: Generator
Parts List
Reference
Description
Price
1
65W855500000
Rotor assembly
Loading…
↗
2
65W855101000
Stator assembly
Loading…
↗
3
65W855800000
Coil, pulser
Loading…
↗
4
65W115450000
Key, woodruff
Loading…
↗
5
9020121M1800
Washer, plate (663)
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
913800503000
Bolt,socket
Loading…
↗
8
975950551600
Bolt, with washer
Loading…
↗
9
9044610M8200
Hose
Loading…
↗
10
65W854100000
Emergency signal light assembly
Loading…
↗
11
904651009800
Clamp
Loading…
↗
12
65W813370000
Cover Flywheel
Loading…
↗
13
65W816390000
Cover
Loading…
↗
14
975950652500
Bolt, hexagon w/w deep recess
Loading…
↗
15
6G1427250000
Grommet
Loading…
↗
16
65W843420000
Seat, emblem
Loading…
↗
17
65W157581000
Guide Rope
Loading…
↗
18
65W157620000
Seal, rubber 2
Loading…
↗
19
65W157710000
Stay 1
Loading…
↗
20
975950662000
Bolt, hexagon w/w deep recess
Loading…
↗
