F20AM (1999)
Generator

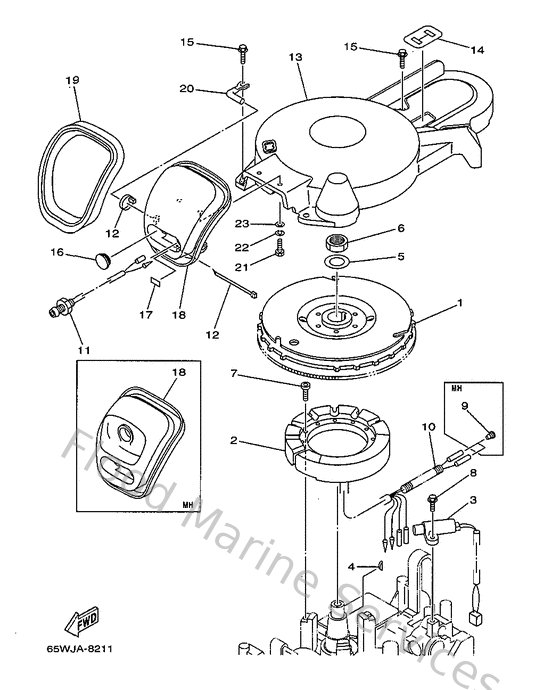

Diagram: Generator
Parts List
Reference
Description
Price
1
65W855500000
Rotor assembly
Loading…
↗
2
65W855101000
Stator assembly
Loading…
↗
3
65W855800000
Coil, pulser
Loading…
↗
4
65W115450000
Key, woodruff
Loading…
↗
5
9020121M1800
Washer, plate (663)
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
913800502500
Bolt, hex. socket head
Loading…
↗
8
975950551600
Bolt, with washer
Loading…
↗
10
9044610M8200
Hose
Loading…
↗
11
65W854100100
Emergency signal light assembly
Loading…
↗
12
9046511M1000
Clamp
Loading…
↗
13
65W813370000
Cover Flywheel
Loading…
↗
14
65W816390000
Cover
Loading…
↗
15
9010106M2700
Bolt
Loading…
↗
16
6G1427250000
Grommet
Loading…
↗
17
65W843420000
Seat, emblem
Loading…
↗
18
65W157581000
Guide Rope
Loading…
↗
19
65W157620000
Seal, rubber 2
Loading…
↗
20
65W157710000
Stay 1
Loading…
↗
21
970800602000
Bolt(7u8)
Loading…
↗
22
929950610000
Washer(6a1)
Loading…
↗
23
929950660000
Washer, plain (646)
Loading…
↗
