F20AM (2001)
Generator

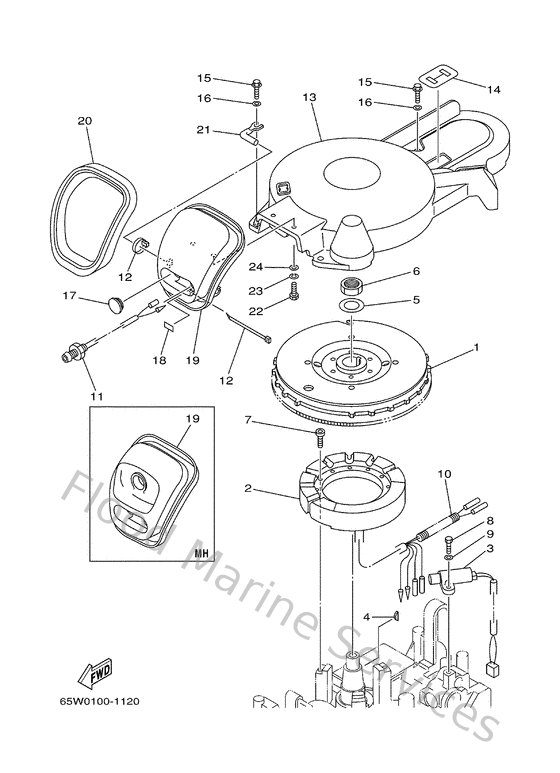

Diagram: Generator
Parts List
Reference
Description
Price
1
65W855501100
Rotor assembly
Loading…
↗
2
65W855100000
Stator assembly
Loading…
↗
3
65W855800000
Coil, pulser
Loading…
↗
4
65W115450000
Key, woodruff
Loading…
↗
5
9020121M1800
Washer, plate (663)
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
913800502500
Bolt, hex. socket head
Loading…
↗
8
970950501600
Bolt(6a1)
Loading…
↗
9
929950560000
Washer, plain (646)
Loading…
↗
10
9044610M8200
Hose
Loading…
↗
11
65W854100100
Emergency signal light assembly
Loading…
↗
12
9046511M1000
Clamp
Loading…
↗
18
65W843420000
Seat, emblem
Loading…
↗
19
65W157580000
Guide, Rope
Loading…
↗
20
65W157620000
Seal, rubber 2
Loading…
↗
21
65W157710000
Stay 1
Loading…
↗
22
970950602000
Bolt(7u8)
Loading…
↗
23
929950610000
Washer(6a1)
Loading…
↗
24
929950660000
Washer, plain (646)
Loading…
↗
