F30AMS (2001)
Generator

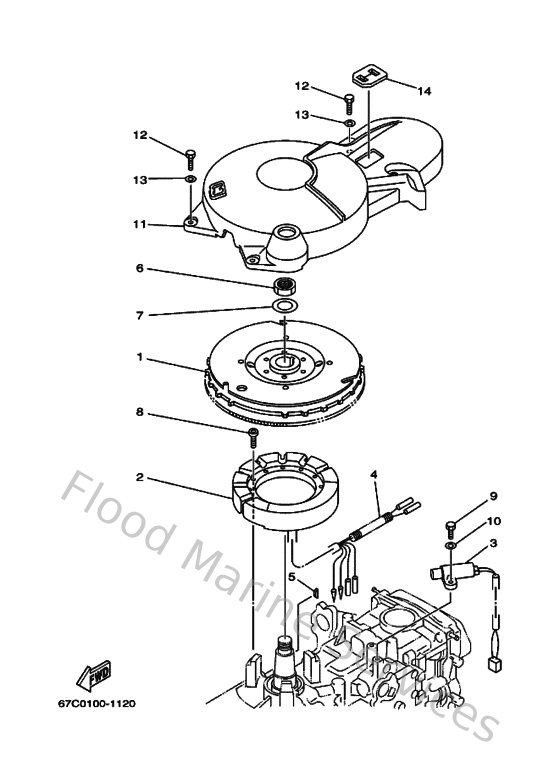

Diagram: Generator
Parts List
Reference
Description
Price
1
65W855500100
Rotor assembly
Loading…
↗
2
65W855101000
Stator assembly
Loading…
↗
3
65W855800000
Coil, pulser
Loading…
↗
4
9044610M8200
Hose
Loading…
↗
5
65W115450000
Key, woodruff
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
9020121M1800
Washer, plate (663)
Loading…
↗
8
913800503000
Bolt,socket
Loading…
↗
9
970950501600
Bolt(6a1)
Loading…
↗
10
929950560000
Washer, plain (646)
Loading…
↗
11
67C813370000
Cover, flywheel
Loading…
↗
12
970950602500
Bolt
Loading…
↗
13
929950660000
Washer, plain (646)
Loading…
↗
14
65W816391000
Cover
Loading…
↗
