Yamaha Outboard Parts - Generator - F40BM (2000) | Flood Marine

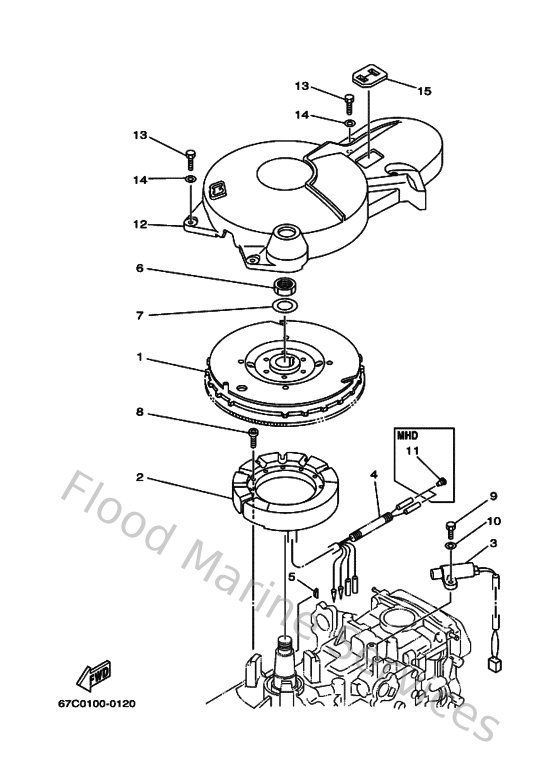

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
65W855500100
Rotor assembly
Loading…

↗
2
65W855101000
Stator assembly
Loading…

↗
3
65W855800000
Coil, pulser
Loading…

↗
4
9044610M8200
Hose
Loading…

↗
5
65W115450000
Key, woodruff
Loading…

↗
6
901702013700
Nut, hexagon(663)
Loading…

↗
7
9020121M1800
Washer, plate (663)
Loading…

↗
8
913800503000
Bolt,socket
Loading…

↗
9
970950501600
Bolt(6a1)
Loading…

↗
10
929950560000
Washer, plain (646)
Loading…

↗
12
67C813370000
Cover, flywheel
Loading…

↗
13
970950602500
Bolt
Loading…

↗
14
929950660000
Washer, plain (646)
Loading…

↗
15
65W816391000
Cover
Loading…

↗
