F45A (1998)
Generator

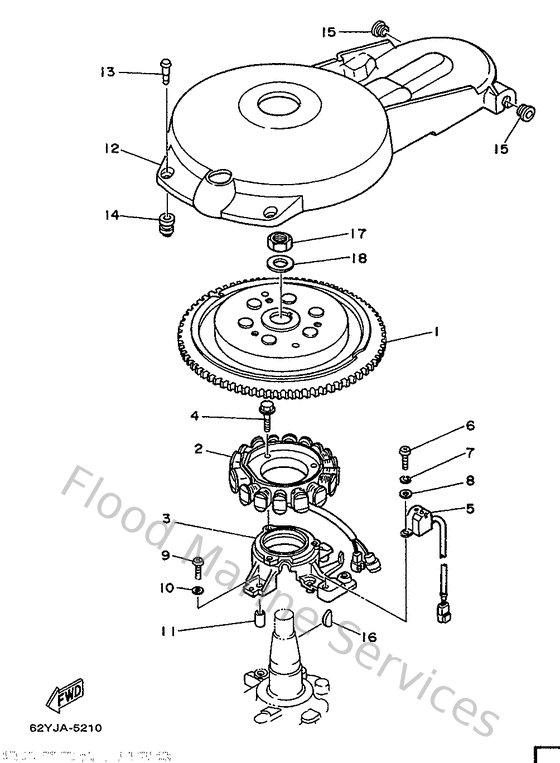

Diagram: Generator
Parts List
Reference
Description
Price
1
62Y855500100
Rotor assembly
Loading…
↗
2
62Y855100100
Stator assembly
Loading…
↗
3
62Y855610094
Base, magneto
Loading…
↗
4
950240602500
Bolt, flange(4kg)
Loading…
↗
5
62Y855800000
Coil, pulser
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
929900510000
Ybs67-5 washer, spring
Loading…
↗
8
929900560000
Washer, plain (646)
Loading…
↗
9
978850602500
Screw, pan head(6b0)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
995300801200
Pin, dowel(6g8)
Loading…
↗
12
62Y813370000
Cover, Flywheel
Loading…
↗
13
6K7813380100
Stay
Loading…
↗
14
663823170100
Damper, ignition coil
Loading…
↗
15
904801207200
Grommet(53y)
Loading…
↗
16
6H4115450000
Key, woodruff
Loading…
↗
17
901702013700
Nut, hexagon(663)
Loading…
↗
18
9020121M1800
Washer, plate (663)
Loading…
↗
