F4AMH (1998)
Generator

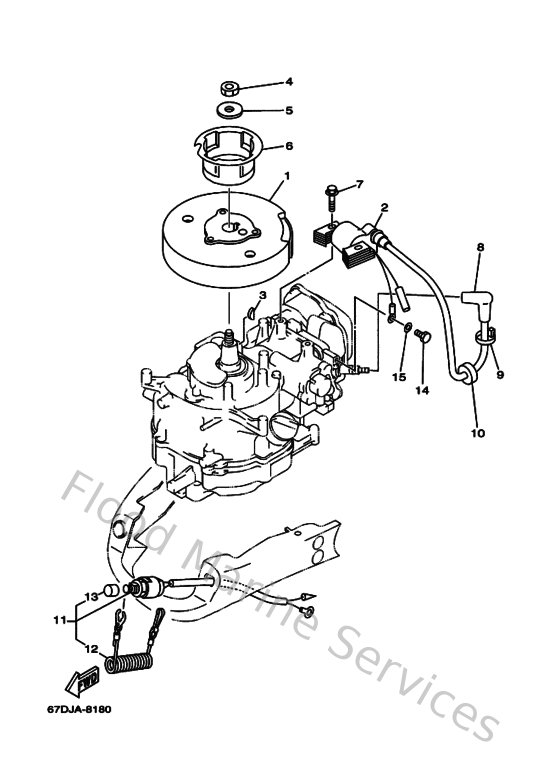

Diagram: Generator
Parts List
Reference
Description
Price
1
67D856500000
Rotor assembly
Loading…
↗
2
67D856400000
T.c.i. unit assembly
Loading…
↗
3
9028004M0600
Key, woodruff(6a1)
Loading…
↗
4
9017010M3300
Nut(6a1)
Loading…
↗
5
90201105A200
Washer, plate (4x7)
Loading…
↗
6
67D157230000
Pulley Starter
Loading…
↗
7
9010506M2400
Bolt (6g1)
Loading…
↗
8
6E3823702100
Plug cap assembly
Loading…
↗
9
9046511M1000
Clamp
Loading…
↗
10
904802516100
Grommet(656)
Loading…
↗
11
67D825750000
Engine stop switch assembly
Loading…
↗
12
682825560000
Lanyard, stop switch
Loading…
↗
14
970950601200
Bolt(gh1)
Loading…
↗
15
929950660000
Washer, plain (646)
Loading…
↗
