F6AMH (2000)
Generator

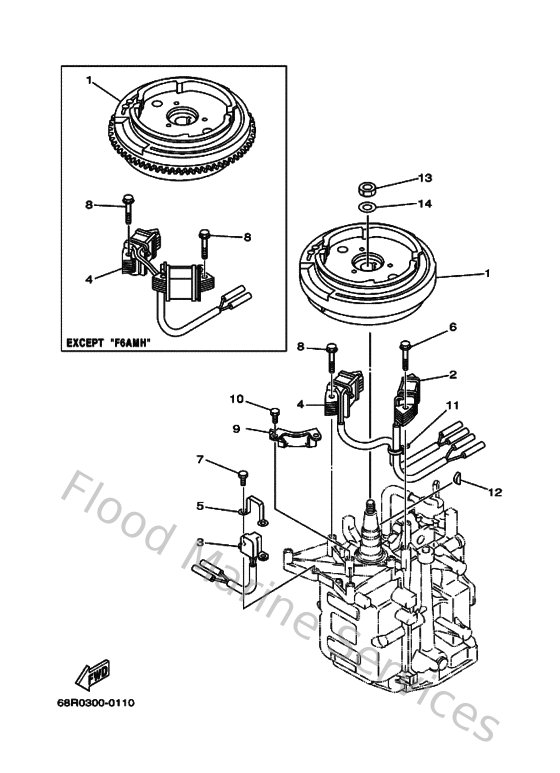

Diagram: Generator
Parts List
Reference
Description
Price
1
68T855500000
Rotor assembly
Loading…
↗
2
68T855200000
Coil, charge
Loading…
↗
3
68T855800000
Coil, pulser
Loading…
↗
4
68T855330000
Coil, lighting
Loading…
↗
5
6H2855820000
Attachment, pulser
Loading…
↗
6
901190601400
Bolt, with washer(61b)
Loading…
↗
7
970950501000
Bolt (682)
Loading…
↗
8
975130653000
Bolt, with washer(63m)
Loading…
↗
9
68T813280000
Clamp
Loading…
↗
10
970950601000
Bolt
Loading…
↗
11
904651009800
Clamp
Loading…
↗
12
9028004M0600
Key, woodruff(6a1)
Loading…
↗
13
901701206600
Nut, hexagon 6481155500
Loading…
↗
14
902011247200
Washer, plate (4n0)
Loading…
↗
