F8BMH (1992)
Generator

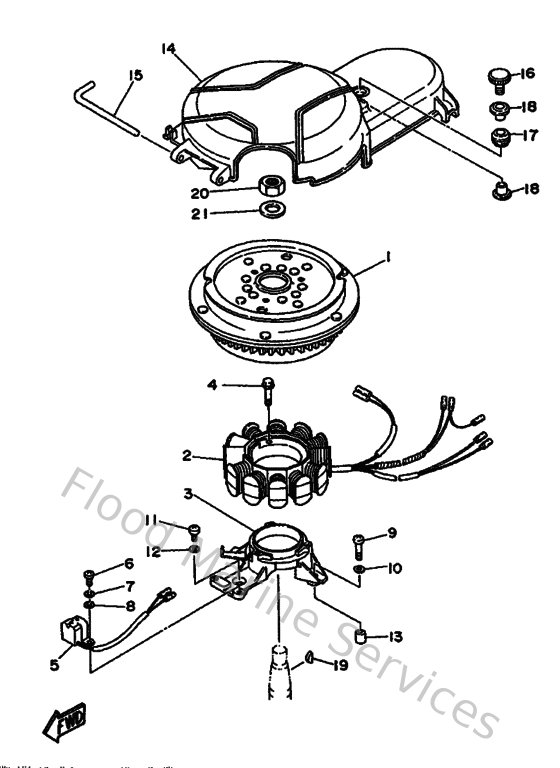

Diagram: Generator
Parts List
Reference
Description
Price
2
6G9855100100
Stator assembly
Loading…
↗
3
6G8855610094
Base, Magneto
Loading…
↗
4
950230602500
Bolt, flange(4kg)
Loading…
↗
5
6G8855800200
Coil, pulser
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
929900510000
Ybs67-5 washer, spring
Loading…
↗
8
929900560000
Washer, plain (646)
Loading…
↗
9
925800602500
Screw, pan head(6b0)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
985800602000
Screw pan head
Loading…
↗
13
995100801200
Pin, dowel(n04)
Loading…
↗
14
6G8813370000
Cover, Flywheel
Loading…
↗
15
6G8427520000
Shaft
Loading…
↗
16
6G8813230000
Screw 1
Loading…
↗
17
9048015M3100
Grommet (6g1)
Loading…
↗
19
902801605300
Key, woodruff
Loading…
↗
20
901701206600
Nut, hexagon 6481155500
Loading…
↗
21
902011247200
Washer, plate (4n0)
Loading…
↗
1
6G8855500100
Rotor assembly
Loading…
↗
