Yamaha Outboard Parts - Generator - F9.9CMH (1998) | Flood Marine

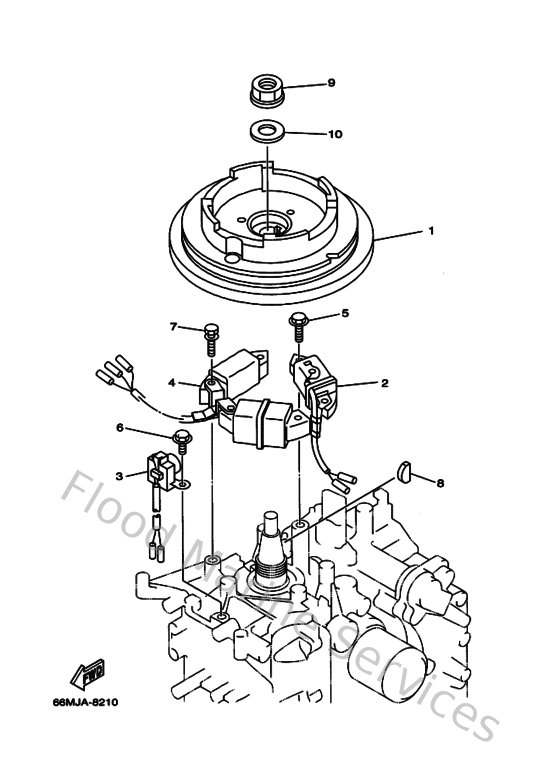

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
66M855500000
Rotor assembly
Loading…

↗
2
66M855200000
Coil, charge
Loading…

↗
3
66M855800000
Coil, pulser
Loading…

↗
4
66M855330000
Coil, Lighting
Loading…

↗
5
975950662500
Bolt, hexagon w/w deep recess
Loading…

↗
6
9011906M4100
Bolt, with washer(6r6)
Loading…

↗
7
975950653000
Bolt, hexagon w/w deep recess
Loading…

↗
8
902800501300
Key, woodruff
Loading…

↗
9
9017916M0500
Nut (689)
Loading…

↗
10
9020116M4400
Washer (689)
Loading…

↗
