FT9.9AMH (1999)
Generator

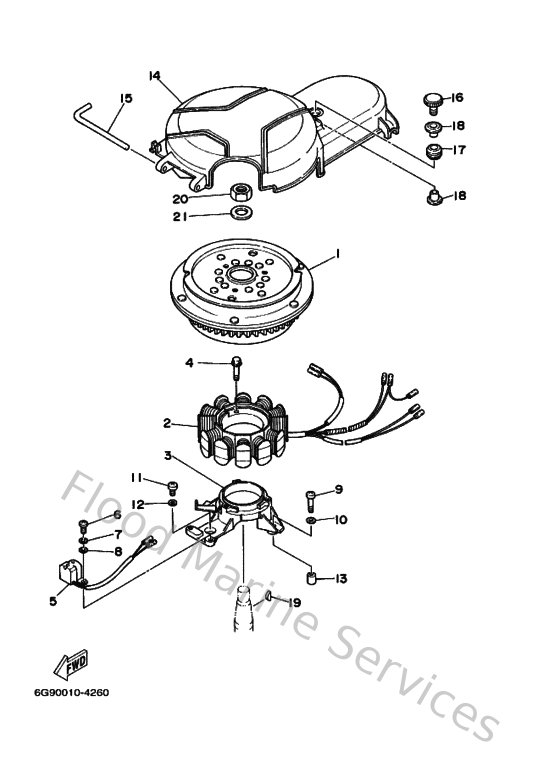

Diagram: Generator
Parts List
Reference
Description
Price
1
6G8855501100
Rotor assembly
Loading…
↗
2
6G8855100100
Stator assembly
Loading…
↗
3
6G8855610094
Base, Magneto
Loading…
↗
4
950230602500
Bolt, flange(4kg)
Loading…
↗
5
6G8855800200
Coil, pulser
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
929900510000
Ybs67-5 washer, spring
Loading…
↗
8
929900560000
Washer, plain (646)
Loading…
↗
9
978800602500
Screw, pan head(6b0)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
985800602000
Screw pan head
Loading…
↗
13
995300801200
Pin, dowel(6g8)
Loading…
↗
14
6G8813370100
Cover, Flywheel
Loading…
↗
15
6G8427520000
Shaft
Loading…
↗
16
6G8813230000
Screw 1
Loading…
↗
17
9048015M3100
Grommet (6g1)
Loading…
↗
18
9038706M7100
Collar (6g8)
Loading…
↗
19
902800501300
Key, woodruff
Loading…
↗
20
901701206600
Nut, hexagon 6481155500
Loading…
↗
21
902011247200
Washer, plate (4n0)
Loading…
↗
