L200FETOL (1997)
Generator

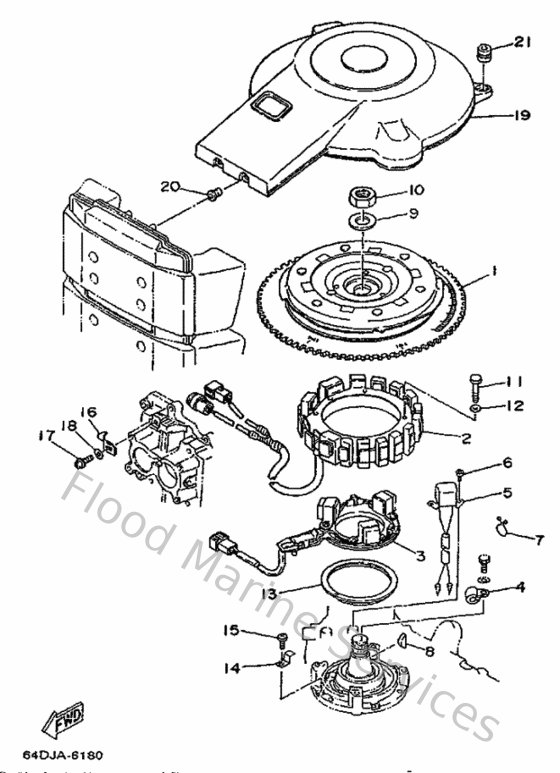

Diagram: Generator
Parts List
Reference
Description
Price
2
6R3855100000
Stator assembly
Loading…
↗
3
64D855800000
Coil, pulser
Loading…
↗
4
904650802800
Clamp (1e6)
Loading…
↗
5
6R5858950100
Crank position sender
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
904641603900
Clamp (3y2)
Loading…
↗
8
902800504900
Key, woodruff (12r)
Loading…
↗
9
9020121M1800
Washer, plate (663)
Loading…
↗
10
901702013700
Nut, hexagon(663)
Loading…
↗
11
970130607000
Bolt(62j)
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
688416110000
Retainer, magneto base 1
Loading…
↗
14
688416120000
Retainer, magneto base 2
Loading…
↗
15
978800601800
Screw, pan head(6e5)
Loading…
↗
16
6E5813320000
Plate, timing
Loading…
↗
17
979850621000
Screw pan head
Loading…
↗
19
64D813370100
Cover, Flywheel
Loading…
↗
20
6G5823170000
Damper
Loading…
↗
21
663823170100
Damper, ignition coil
Loading…
↗
