Yamaha Outboard Parts - Generator - L250AETO (2000) | Flood Marine

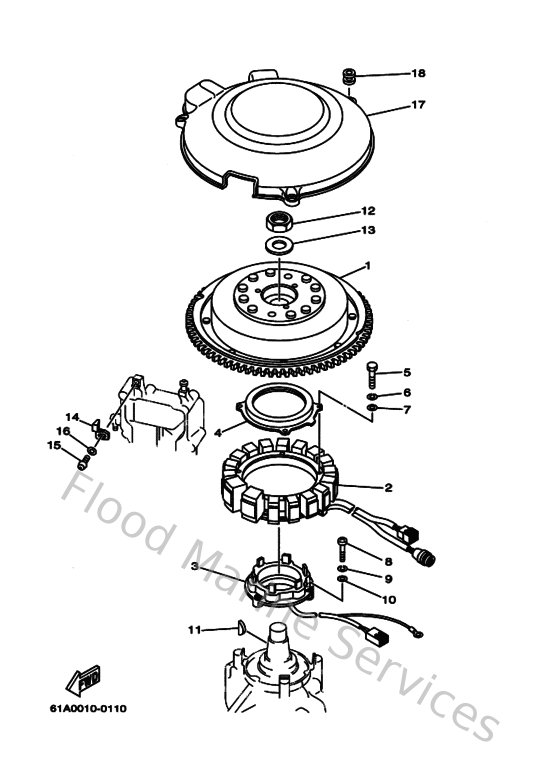

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
61A855500100
Rotor assembly
Loading…

↗
2
61A855100200
Stator assembly
Loading…

↗
3
61A855800000
Coil, pulser
Loading…

↗
4
61A837210000
Cover
Loading…

↗
5
970140603500
Bolt(3rv)
Loading…

↗
6
929030610000
Washer(6a1)
Loading…

↗
7
929030660000
Washer, plain (646)
Loading…

↗
8
978850503000
Ybs86-530 screw,panhead
Loading…

↗
9
929900510000
Ybs67-5 washer, spring
Loading…

↗
10
929950560000
Washer, plain (646)
Loading…

↗
11
902800501500
Key, woodruff
Loading…

↗
12
9017024M2200
Nut(61a)
Loading…

↗
13
9020125M0200
Washer, plate(61a)
Loading…

↗
14
6E5813320000
Plate, timing
Loading…

↗
15
978850601000
Screw pan head
Loading…

↗
16
929950660000
Washer, plain (646)
Loading…

↗
17
61A813370100
Cover, flywheel
Loading…

↗
18
663823170100
Damper, ignition coil
Loading…

↗
