LF115AET (2000)
Generator

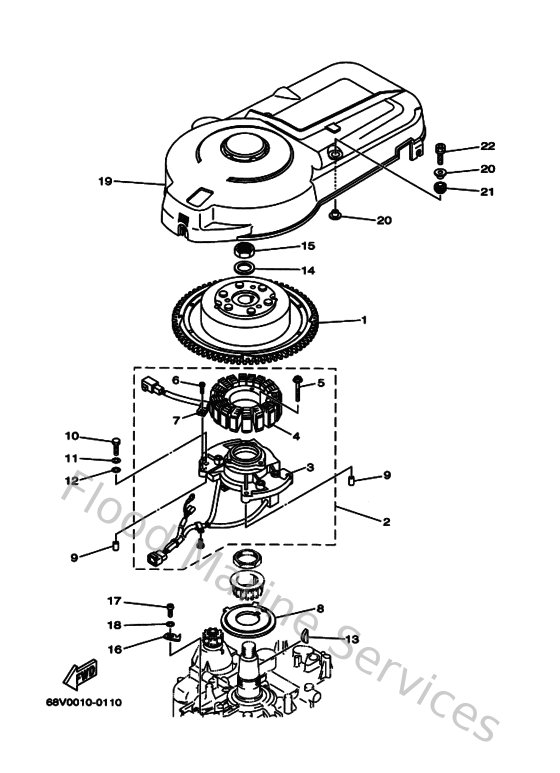

Diagram: Generator
Parts List
Reference
Description
Price
1
68V814500000
Rotor assembly
Loading…
↗
2
68V814600000
Base assembly
Loading…
↗
3
68V855800000
Coil, pulser
Loading…
↗
4
68V814100000
Stator assembly
Loading…
↗
5
63D813452000
Screw, pan
Loading…
↗
6
985170401200
Screw, pan head
Loading…
↗
7
445813282000
Clamp, read
Loading…
↗
8
68V816730000
Rotor
Loading…
↗
9
995300801200
Pin, dowel(6g8)
Loading…
↗
10
970950603000
Bolt(jf7)
Loading…
↗
11
929950610000
Washer(6a1)
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
9028004M0800
Key, woodruff
Loading…
↗
14
9020125M0200
Washer, plate(61a)
Loading…
↗
15
9017024M2200
Nut(61a)
Loading…
↗
16
67F813320000
Plate, timing
Loading…
↗
17
979850621000
Screw pan head
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
19
67F813370100
Cover, flywheel
Loading…
↗
20
9038706M7100
Collar (6g8)
Loading…
↗
21
9048015M3100
Grommet (6g1)
Loading…
↗
22
9011906M9200
Bolt, with washer
Loading…
↗
