Yamaha Outboard Parts - Generator - LZ200NETO (2001) | Flood Marine

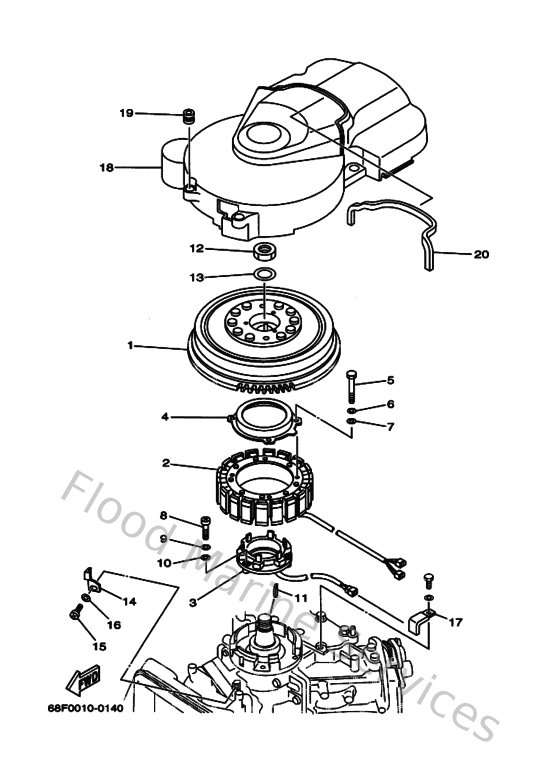

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
68F814500000
Rotor assembly
Loading…

↗
2
68F814100000
Stator assembly
Loading…

↗
3
68F855800000
Coil, pulser
Loading…

↗
4
61A837210000
Cover
Loading…

↗
5
970130603500
Bolt(3rv)
Loading…

↗
6
929950610000
Washer(6a1)
Loading…

↗
7
929030660000
Washer, plain (646)
Loading…

↗
8
978850503000
Ybs86-530 screw,panhead
Loading…

↗
9
929950510000
Ybs67-5 washer, spring
Loading…

↗
10
929900560000
Washer, plain (646)
Loading…

↗
11
902800501500
Key, woodruff
Loading…

↗
12
9017024M2200
Nut(61a)
Loading…

↗
13
9020125M0200
Washer, plate(61a)
Loading…

↗
14
6E5813320000
Plate, timing
Loading…

↗
15
978850601000
Screw pan head
Loading…

↗
16
929900660000
Washer, plain (646)
Loading…

↗
17
9046508M2300
Clamp (6h3)
Loading…

↗
18
68F813370000
Cover Flywheel
Loading…

↗
19
663823170100
Damper, ignition coil
Loading…

↗
20
68F855470000
Damper
Loading…

↗
